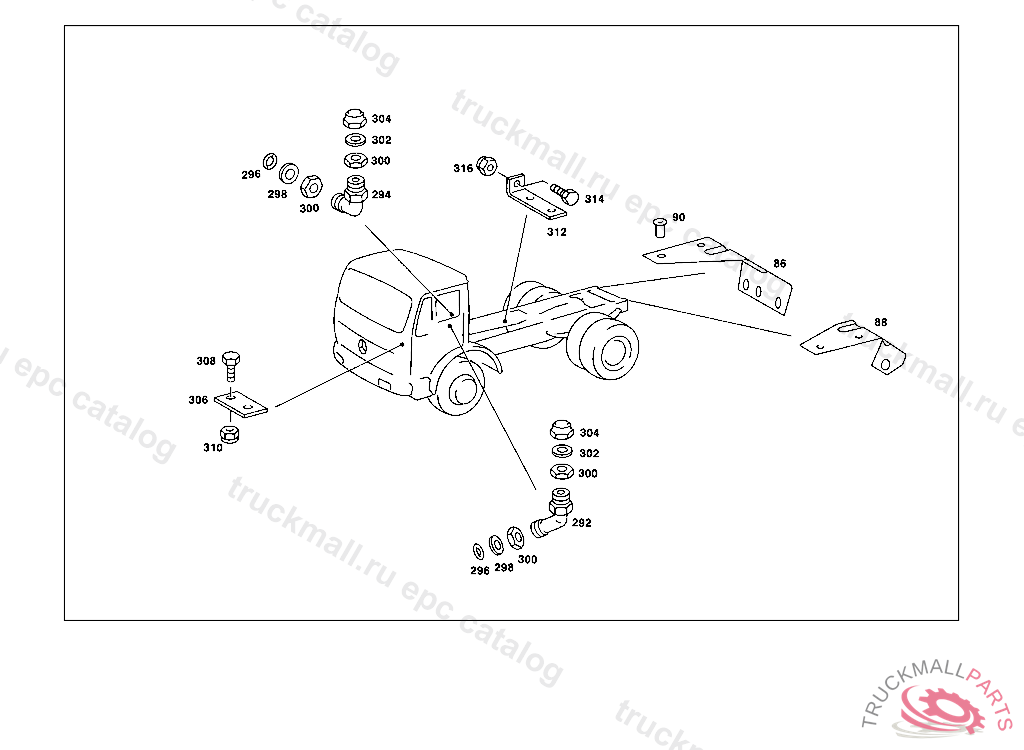

Поз.
Артикул
Описание
86
BRACKET AT FRAME
86
BRACKET , Replaced By: A3874292140
86
BRACKET ,4 346267 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 895682 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6204296140
88
BRACKET , Replaced By: A3874292040
88
BRACKET , Replaced By: A3874292040
88
BRACKET AT FRAME
90
RIVET BRACKET TO FRAME
90
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
292
ELBOW FITTING SHUTTLE VALVE TO BRAKE CYLINDER
292
ELBOW FITTING , Replaced By: A0019901871
294
ELBOW FITTING , Replaced By: A0004294638
294
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
296
O-RING CHECK VALVE TO AIR RESERVOIR
298
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
298
THRUST RING CHECK VALVE TO AIR RESERVOIR
300
NUT CHECK VALVE TO AIR RESERVOIR
302
SEAL RING , Replaced By: N007603012121
302
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
304
NUT AIR RESERVOIR,CONNECTION "14"
306
SHIM BRACKET TO FRAME
306
BRACKET , Replaced By: A3353170884
308
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
310
NUT STRAP TO BRACKET
310
NUT , Replaced By: N910113010000
312
BRACKET EXHAUST PIPE SUSPENSION
314
SCREW , Replaced By: N304017008021
314
SCREW PIPE CLAMP
316
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
316
NUT , Replaced By: N913004008001
999
REPAIR KIT BRAKE LINE COUPLING TO 000 429 68 30
999
VALVE CONE , Replaced By: A0004290391
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
BRAKE LINE COUPLING , Replaced By: A0004297530
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
REPAIR KITKNORR
999
SPACER RING ,4 428462
999
PISTONVOSS
999
SPRING RETAINERVOSS
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
SPRINGTO 000 429 16 30
999
PLUG FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING AIR CLEANER
999
REPAIR KITTO A 000 429 11 31
999
REPAIR KITWABCO
999
PLUG TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SEAL RING LINE CONNECTION
