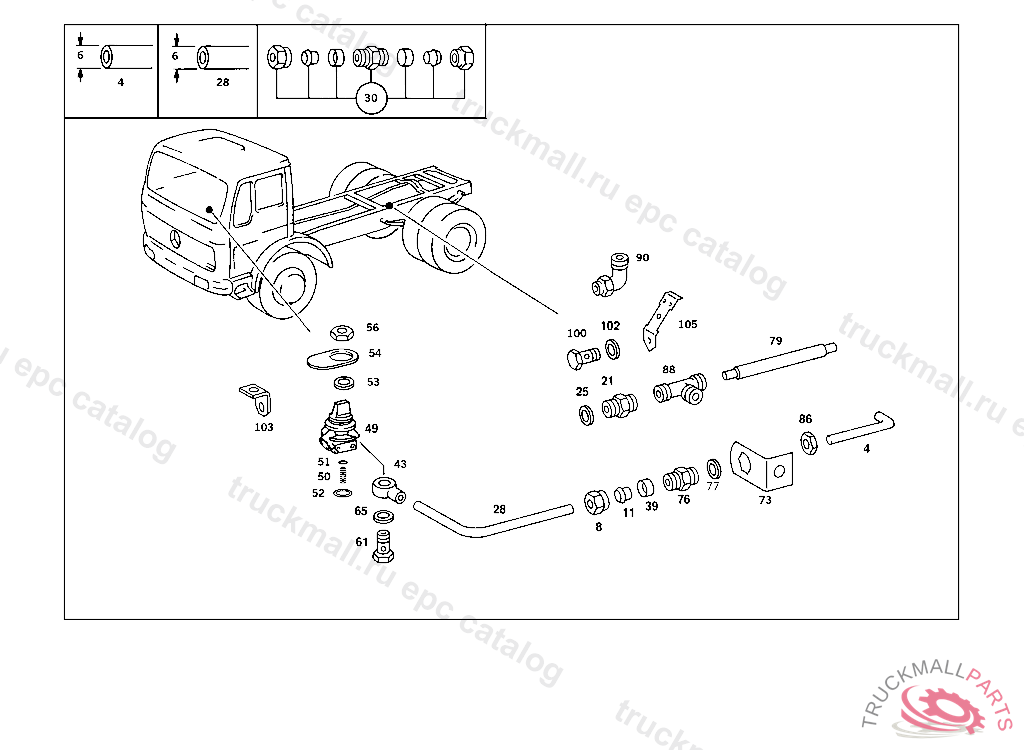

Поз.
Артикул
Описание
4
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
4
LINE , Replaced By: A0004296201
8
UNION NUT
11
SEAL CONE
11
GLAND , Replaced By: A0019901667
21
FITTING , Replaced By: A0039979072
21
FITTING , Replaced By: A0029906071
21
TS DOUBLE FITTING SOLENOID VALVE
25
SEAL RING LINE CONNECTION
28
PLASTIC PIPE RISING PIPE 4X6 MM
28
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
30
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
39
SLEEVE LEAK LINE
39
BUSHING , Replaced By: N915062004000
43
BANJO UNION , Replaced By: N915052004006
43
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
43
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
49
VALVE 3/2-WAY WABCO
49
VALVE 3/2-WAY KNORR
49
VALVE 3/2-WAY BOSCH
49
VALVE 3/2-WAY VOSS
50
SPRING INSIDE WABCO
51
SEAL RING INSIDE WABCO
52
SEAL RING TOP WABCO
53
WASHER AT TWO-WAY VALVE
53
WASHER 3/2-WAY VALVE TO BRACKET
54
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
54
SYMBOL PLATE
54
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
56
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
61
HOLLOW SCREW LINE CONNECTION
65
SEAL RING PNEUMATIC VALVE
65
SEAL RING , Replaced By: N007603010110
73
BRACKET BRACKET TO REAR AXLE II
73
BRACKET BRACKET TO REAR AXLE II,4 195521
76
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
76
TS DOUBLE FITTING SOLENOID VALVE
76
FITTING , Replaced By: A0039979072
76
FITTING , Replaced By: A0009977172
76
FITTING , Replaced By: A0029906071
76
BULKHEAD FITTING , Replaced By: A0019973872
77
SEAL RING LINE CONNECTION
79
HOSE , Replaced By: N071435006002
79
BRAKE HOSE , Replaced By: N071435006002
79
HOSE ,4 195522
86
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
88
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
90
FITTING FROM PUMP TO CYLINDER
90
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
100
HOLLOW SCREW HEATING CONNECTION
102
SEAL RING LINE CONNECTION
103
ANGLE LINE MOUNTING
105
BRACKET LINE MOUNTING
105
BRACKET , Replaced By: A3874297240
999
ELBOW FITTING FROM FITTING TO VALVE
999
BUSHING , Replaced By: N915062004000
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
GLAND , Replaced By: A0019901667
999
BULKHEAD FITTING , Replaced By: A0019973872
