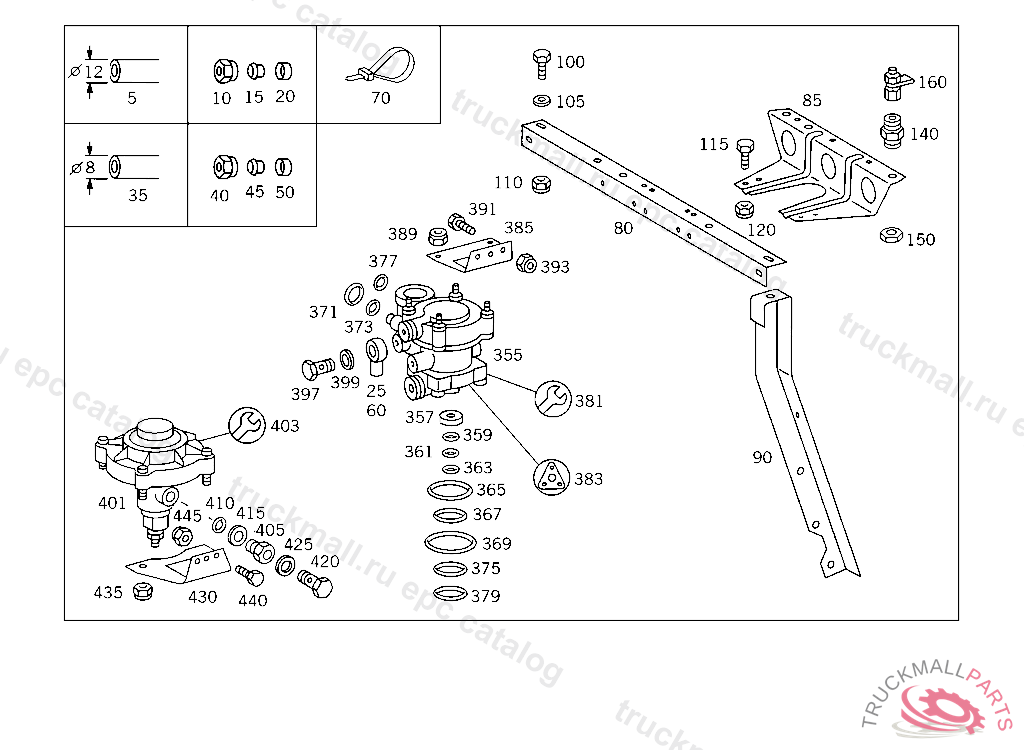

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
10
UNION NUT LINE CONNECTION, Replaced By: N000000006239
10
UNION NUT , Replaced By: N915017012100
10
UNION NUT LINE CONNECTION
15
SEAL CONE LINE CONNECTION
15
GLAND , Replaced By: A0019901967
20
BUSHING , Replaced By: N915062009000
20
SLEEVE LINE CONNECTION
25
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
25
BANJO UNION , Replaced By: N915052009009
35
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
40
UNION NUT LINE CONNECTION
45
GLAND LINE CONNECTION
50
SLEEVE , Replaced By: N915062006000
50
SLEEVE LINE CONNECTION
60
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
60
BANJO UNION HEATING CONNECTION,K 169122
60
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
70
LOOM TIE LINE MOUNTING
70
LOOM TIE LINE MOUNTING 280 MM
80
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
80
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
85
SUPPORT , Replaced By: A6214320116
85
SUPPORT , Replaced By: A3874321616
85
SUPPORT , Replaced By: A3874320916
85
SUPPORT BRAKE LINE COUPLINGS
90
ANGLE RIGHT
90
ANGLE LEFT
90
ANGLE , Replaced By: A6214320117
90
ANGLE , Replaced By: A6214320017
100
SCREW , Replaced By: N304017008021
100
SCREW PIPE CLAMP
105
WASHER EXHAUST MUFFLER TO STRAP
105
WASHER , Replaced By: N000125008443
110
NUT , Replaced By: N913004008001
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
115
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
120
NUT STRAP TO BRACKET
120
NUT , Replaced By: N910113010000
140
FITTING BRAKE LINE COUPLING TO BRACKET
140
FITTING SHUTTLE VALVE
150
NUT BRACKET TO SIDE MEMBER
160
TEST CONNECTION BULKHEAD FITTING
160
TEST CONNECTION
160
TEST CONNECTION , Replaced By: A0004313031
160
TEST CONNECTION , Replaced By: A0004312931
355
BRAKE VALVE , Replaced By: A0024314805
355
BRAKE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0034313405
355
BRAKE VALVE , IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING, Replaced By: A0024314005
355
BRAKE VALVEGRAU, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
355
BRAKE VALVE (TRAILER CONTROL VALVE) KNORR, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
355
BRAKE VALVEWABCO, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
357
VALVE SEATTO GRAU
359
SEAL RING22.3X2.4 MM,GRAU
361
SEAL RING7X1.5,TO GRAU
363
SEAL RING18X2.5,TO GRAU
365
SEAL RING90X3,TO GRAU
367
SEAL RING64.77X2.62,TO GRAU
369
SEAL RING100X3,TO GRAU
371
SEAL RING30X2,TO GRAU
373
SEAL RING23.47X2.62,TO GRAU
375
SEAL RING44.2X3,TO GRAU
377
SEAL RING9X1.5,TO GRAU
379
SEAL RINGTO GRAU
381
REPAIR KITTO 001 431 67 05, BOSCH 061 010
381
REPAIR KITTO KNORR
381
REPAIR KITTO WABCO
381
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
381
REPAIR KITTO GRAU
381
REPAIR KIT VALVE SEAT KNORR
381
REPAIR KIT VALVE DISC TO 001 431 67 05,BOSCH 061 214
381
REPAIR KIT , Replaced By: A0024301860
381
REPAIR KIT , Replaced By: A0004301109
381
REPAIR KIT , Replaced By: A0014304760
383
GASKET KIT SEAL RING TO 001 431 67 05,BOSCH 061 214
385
BRACKET TRAILER CONTROL VALVE,K 213085
385
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
385
BRACKET , Replaced By: A6205244040
389
NUT , Replaced By: N913004008001
389
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
391
SCREW SUPPORT TO FENDER
391
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
391
SCREWM 8X40
391
SCREW , Replaced By: N304017008027
391
SCREW , Replaced By: N304017008018
393
NUT , Replaced By: N913004008001
393
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
397
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
399
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
401
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
401
BRAKE VALVE (TRAILER CONTROL VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
403
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 46 05,BOSCH
403
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 52 05, WABCO
403
REPAIR KIT , Replaced By: A0014306160
405
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
410
O-RING CHECK VALVE TO AIR RESERVOIR
415
THRUST RING CHECK VALVE TO AIR RESERVOIR
415
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
420
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
425
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
430
BRACKET TRAILER CONTROL VALVE
430
BRACKET TRAILER CONTROL VALVE TO BRACKET
435
NUT , Replaced By: N910113010000
435
NUT STRAP TO BRACKET
440
SCREW , Replaced By: N304017008027
440
SCREW , Replaced By: N304017008018
440
SCREW SUPPORT TO FENDER
440
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
440
SCREWM 8X40
445
NUT , Replaced By: N913004008001
445
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
BRACKET TRAILER CONTROL VALVE
999
REPAIR KITWABCO
999
SPRINGTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
NUTTO 000 429 16 30
999
SPRING CAPSULETO 000 429 16 30
999
COVERTO 000 429 16 30,BOSCH
999
COVERWABCO
999
COVERTO 000 429 48 30
999
VALVE CONEBOSCH
