Поз.
Артикул
Описание

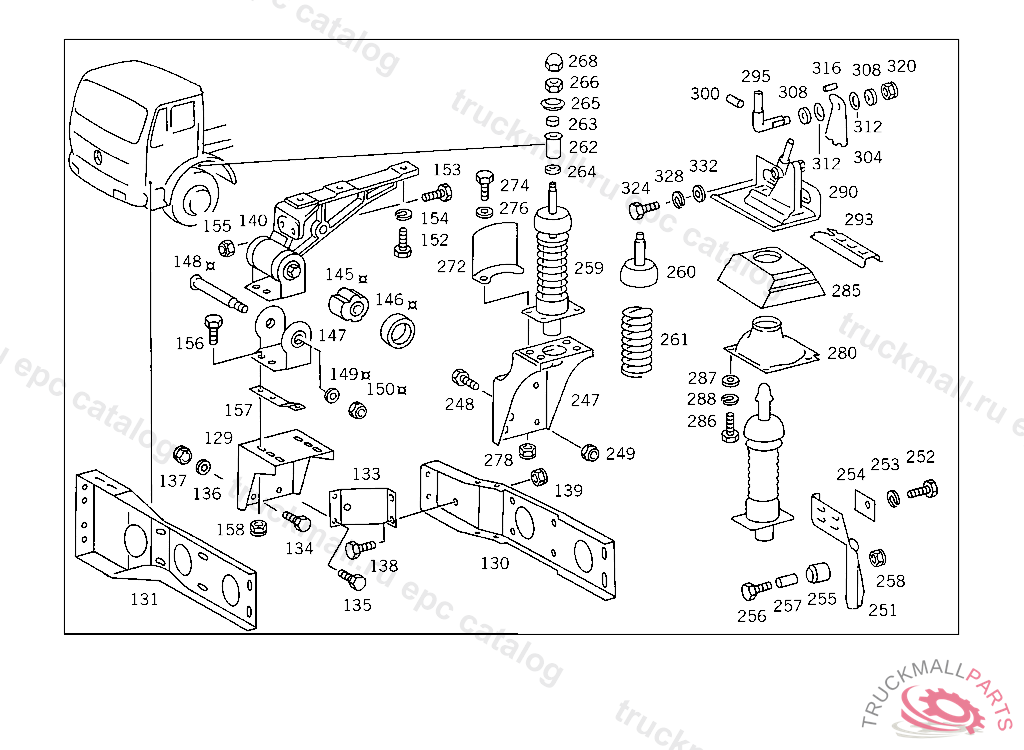

129
CONSOLE , Replaced By: A3878912631
129
CONSOLE PEDESTAL
129
CONSOLE PEDESTAL
130
STRUT BUMPER AT TORSION BAR, 954542
131
STRUT BUMPER AT TORSION BAR
133
BRACKET BUMPER AT TORSION BAR, 954542
134
SCREW , Replaced By: N308676014012
134
SCREW SUPPORT TO SIDE MEMBER M 14X45
135
SCREW , Replaced By: A9429901304
135
SCREW APPARATUS SUPPORT TO FRAME
136
WASHER , Replaced By: N000125015019
136
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
137
NUT CAB ON CONSOLE AT FRAME
138
SCREW , Replaced By: N308676012012
138
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
139
NUT SUPPORT TO SIDE MEMBER
140
BRACKET CAB,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
140
BRACKET CAB, RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
145
RUBBER BUFFER
146
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
147
MOUNTING , Replaced By: A3878908703, +001A6558902903
148
PIN
149
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
150
NUT COMBINATION CYLINDER TO BEARING BRACKET
150
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
152
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
153
SCREW BRACKET TO SIDE MEMBER
154
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
155
NUT BRACKET TO SIDE MEMBER
155
NUT , Replaced By: N910113014001
156
SCREW SUPPORT TO SIDE MEMBER M 14X45
156
SCREW , Replaced By: N308676014012
156
SCREW APPARATUS SUPPORT TO FRAME
156
SCREW , Replaced By: A9429901304
158
NUT STEERING SUPPORT TO FRAME
158
NUT , Replaced By: N910113014000
247
CONSOLE CAB SUSPENSION
247
CONSOLE , Replaced By: A3873170001
247
CONSOLE CAB SUSPENSION
248
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
248
SCREW , Replaced By: N308676012026
249
NUT SUPPORT TO SIDE MEMBER
251
GUIDE RIGHT
251
GUIDE CAB, RIGHT, 10/20 UP TO IDENT NO. 960232, 50/60 UP TO IDENT NO. 962188
251
GUIDE LEFT
251
GUIDE CAB,LEFT, 10/20 UP TO IDENT NO. 960232, 50/60 UP TO IDENT NO. 962188
252
SCREW CONSOLE TO SIDE MEMBER
253
LOCK WASHER FITTING TO BRACKET
254
SHIM GUIDE TO CAB
254
REINFORCEMENT CAB, 10/20 UP TO IDENT NO. 960232, 50/60 UP TO IDENT NO. 962188
255
BUSHING LATERAL GUIDE OF CAB
256
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
257
SPACER TUBE BRACKET TO CONSOLE
258
NUT SUPPORT TO SIDE MEMBER
259
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
259
SHOCK ABSORBER , Replaced By: A3878901319
259
SHOCK ABSORBER , Replaced By: A3878901619
259
SHOCK ABSORBER , Replaced By: A3878901619
260
RUBBER MOUNTINGTO 387 890 36 19
260
RUBBER MOUNTINGTO 620 890 02 19
260
MOUNTING , 10/20 UP TO IDENT NO. 4 169562,50/60 UP TO IDENT NO. 4 175458
261
SPRING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 146509
261
SPRING , Replaced By: A0008910451
261
SPRING , 10/20 UP TO IDENT NO. 4 169562,50/60 UP TO IDENT NO. 4 175458
262
SPACER TUBE SHOCK ABSORBER MOUNTING
263
RUBBER RING SHOCK ABSORBER MOUNTING
263
DISC SPRING , Replaced By: A3275045082, +001A3878912010
264
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
265
WASHER SHOCK ABSORBER MOUNTING
266
NUT STRAP TO SUPPORT
268
CAP NUT VIBRATION ABSORBER
268
CAP NUT , Replaced By: N001587012010
272
COVER PLATE SHOCK ABSORBER
274
SCREW BRACKET TO CROSS CONNECTION STRUT
274
SCREW , Replaced By: N304017008034
276
WASHER BRACKET TO LEFT SIDE MEMBER
276
WASHER , Replaced By: N009021008213
278
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
278
NUT , Replaced By: N913004008001
280
BRACKET VIBRATION ABSORBER TO CAB,RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 157715
280
BRACKET , Replaced By: A3813177940
280
BRACKET VIBRATION ABSORBER TO CAB,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 157715
280
BRACKET , Replaced By: A3813177840
285
BOOT VIBRATION ABSORBER, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 157715
286
SCREW END PIECE TO EXHAUST PIPE M 10X25
287
WASHER RADIATOR TO RUBBER MOUNTING
287
WASHER , Replaced By: N000125010532
288
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
290
LOCKING MECHANISM CAB LOCKING MECHANISM,RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
290
LOCKING MECHANISM , Replaced By: A3813101975
290
LOCKING MECHANISM CAB LOCKING MECHANISM,LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
290
LOCKING MECHANISM , Replaced By: A3813102075
293
LATCH CAB LOCKING MECHANISM
295
PIN , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
295
COUPLING PIN , Replaced By: A3813172374
300
ROLL PIN. CLAMPING PIN , 385.068,069 ON VEHICLES WITH DB CAB ONLY 385.019 FOR USE WITH SHORT MERCEDES-BENZ CAB
300
CLAMPING SLEEVE , Replaced By: N000000000306
304
LEVER
308
WASHER
312
DISC SPRING CAB LOCKING MECHANISM
316
CLAMPING SLEEVE CAB LOCKING MECHANISM
320
NUT SUPPORT TO SIDE MEMBER
324
SCREW END PIECE TO EXHAUST PIPE M 10X25
328
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
332
WASHER RADIATOR TO RUBBER MOUNTING
332
WASHER , Replaced By: N000125010532
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
SCREW , Replaced By: N308676012013
999
SCREW , Replaced By: A3959900501
999
SCREW , Replaced By: A0029908201
999
SCREW , Replaced By: A3169900014
999
SCREWM 14X14X22X40
999
SCREWM 14X14X18X32
999
SCREWM 14X14X27X45
999
SCREWM 16X18X18X40
999
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
SCREWM 12X13X18X35
999
SCREWM 12X14X13X35
999
SCREWM 14X14X24X42
999
SCREWM 14X15X15X32
999
SCREWM 14X15X21X38
999
SCREW PLATE TO SIDE MEMBER
999
SCREWM 16X17X22X42
999
SCREWM 12X13X21X38
999
SCREWM 14X15X27X44
999
SCREWM 14X15X17X34
999
SCREWM 14X15X29X46
999
SCREWM 14X15X19X36
999
SCREWM 12X13X15X32
999
SCREW , Replaced By: A0009906314
999
SCREWM 14X14X32X50
999
SCREWM 12X13X35X52
999
SCREWM 14X15X35X52
999
SCREWM 14X15X31X48
999
SCREWM 10X11X26.5X46
999
SCREWM 12X12X10X25
999
SCREW , Replaced By: A3229903101
999
SCREW , Replaced By: N308676016020
999
SCREWM 16X16X22X40
999
SCREW , Replaced By: N000961016118
999
SCREWM 12X12X11X26
999
SCREWM 12X12X13X28
999
SCREWM 16X16X20X38
999
SCREWM 16X16X30X48
999
SCREWM 16X16X32X50
999
SCREWM 14X14X18X34
999
SCREWM 12X12X15X30
999
SCREWM 12X12X17X32
999
SCREWM 18X18X23X45
999
SCREW , Replaced By: N000961018043
999
CROSS MEMBERNO.5A
999
STRUT LEFT AND RIGHT
999
SHIM CAB TO FRAME
999
SCREWM 16X18X63X85
999
CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY 312,322,412,422 4 426005 315,325,415,425 4 423552 316,326 4 426856 342,352 4 404477 372 4 405996 EXCEPT FOR 4 404885 442,452 4 405201 EXCEPT FOR 4 399276 472 4 406809 EXCEPT FOR 4 404254,4 405657,4 405954,4 405964 344,354,444,454 4 408959 ALSO INSTALLED ON 4 410954,4 411003,4 411069,4 411174,4 411659,4 412434,4 412569,4 412918,4 413350,4 414258,4 414573,4 415804,4 415914,4 415988, 4 416173,4 416367,4 416554,4 416564,4 417864,4 417912,4 418330,4 418363,4 418368, INAPPLICABLE TO VEHICLES FOR ALGERIA
999
SCREWM 16X16X20X45
999
SCREWM 12X13X13X30
999
SCREWM 12X13X23X40
999
SCREWM 16X18X26X48
999
SCREWM 12X13X12X29
999
SCREWM 16X18X38X60
999
SCREWM 12X13X25X42
999
SCREWM 16X16X38X90
999
SCREWM 14X15X18X35
999
SCREWM 16X17X24X44
999
SCREWM 12X13X63X85
999
SCREWM 12X13X58X80
999
WASHER
999
FITTED SCREWM 10X11X14X28
999
FITTED SCREWM 10X11X24X40
999
FITTED SCREWM 18X19X57X85
999
FITTED SCREWM 10X11X25X38
999
FITTED SCREWM 18X19X25X45
999
FITTED SCREWM 18X19X38X60
999
FITTED SCREWM 18X19X33X55
999
HEXAGON HEAD BOLT , Replaced By: A0029902704
999
SCREW CONSOLE TO FRAME
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
NUT CONSOLE TO SUPPORT
999
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
NUT , Replaced By: N910113012003
999
NUT , Replaced By: N910113016001
999
NUT TORSION BAR TO BEARING BRACKET,5 904661
