Поз.
Артикул
Описание

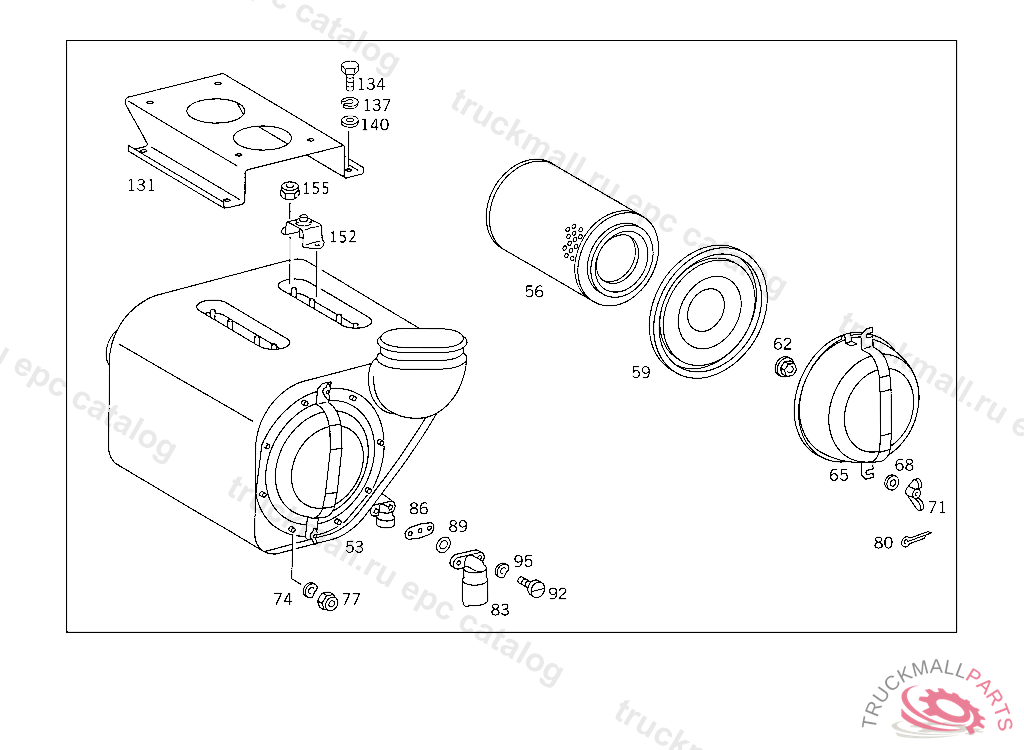

53
AIR CLEANERMANN+HUMMEL
56
FILTER ELEMENT AIR CLEANER
59
COVER LOWER PART MANN & HUMMEL
62
NUT
65
FILTER BOWL COVER TO 008 094 92 02,011 094 70 02
68
WASHER RADIATOR TO RUBBER MOUNTING
71
NUTTO 013 094 80 02,5 158927
71
NUTTO 000 466 38 02
74
SPRING WASHER , Replaced By: N000137008212
74
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
77
NUT , Replaced By: N913004008001
80
COTTER PIN CYLINDER TO BRACKET
83
MAINTENANCE INDICATOR
86
GASKET
89
WASHER FELT
92
SCREW SHIFT CASE TO SLOTTED GATE
95
SPRING WASHER LICENSE PLATE TO BRACKET
131
BRACKET AIR CLEANER
134
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
140
WASHER EXHAUST MUFFLER TO STRAP
152
BUFFER AIR CLEANER
155
NUT , Replaced By: N913004008001
