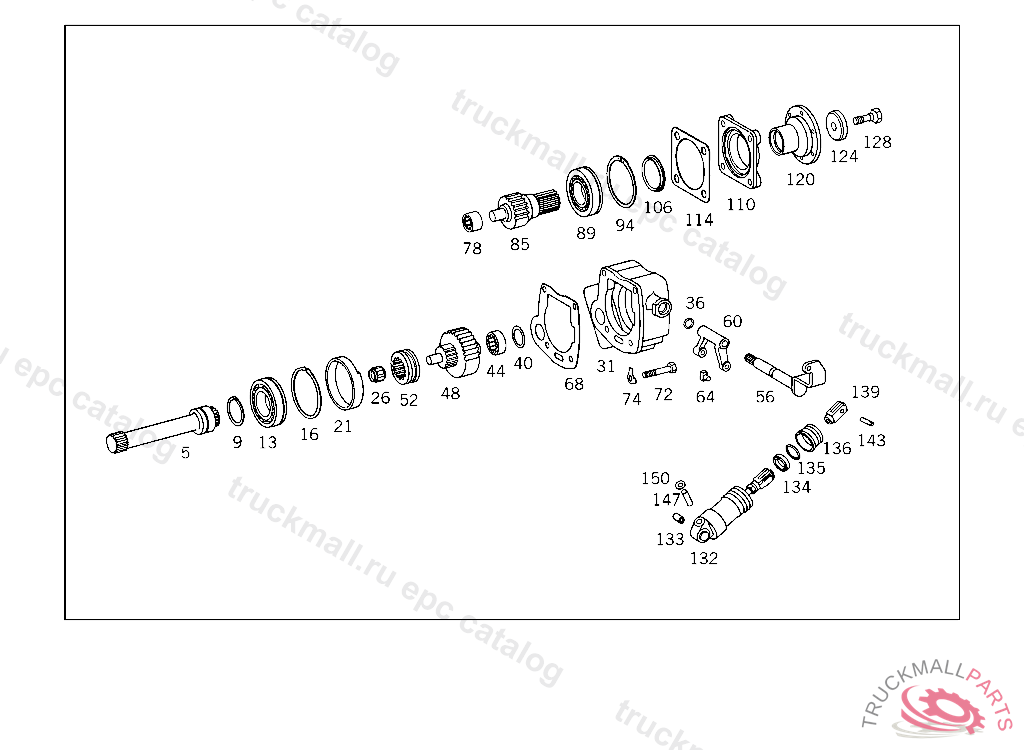

Поз.
Артикул
Описание
5
INTERMEDIATE SHAFT
9
LOCK RING DRIVE GEAR
13
BALL BEARING
13
BALL BEARING
16
SNAP RING
21
RING , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579
21
RING , 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
26
ROLLER ASSEMBLY
31
CASE , 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
36
SEAL RING
40
FITTED WASHER
44
NEEDLE BEARING
48
GEAR DRIVE
48
GEAR DRIVE
52
SLIDING COLLAR
56
SHAFT (SHIFTING SHAFT), 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
60
SHIFTING FORK P.T.O., 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
64
SLIDE SHIFTING FORK
68
GASKET P.T.O. TO TRANSMISSION
68
GASKET , Replaced By: A3852642580
72
SCREW P.T.O. TO TRANSMISSION M 10X85
72
SCREW P.T.O. TO TRANSMISSION M 10X75
72
SCREW P.T.O. TO TRANSMISSION M 10X50
74
LOCK PLATE P.T.O. TO TRANSMISSION
78
NEEDLE BEARING DRIVE SHAFT
85
DRIVE SHAFT
89
BALL BEARING DRIVE SHAFT,183596
89
BALL BEARING , Replaced By: A0089814225
89
BALL BEARING DRIVE SHAFT,183596
94
SNAP RING DRIVE SHAFT
106
SEAL RING
110
COVER
114
GASKET COVER TO P.T.O. CASE
114
GASKET , Replaced By: A3852641680
114
GASKET , Replaced By: A6022640280
120
COUPLING FLANGE
124
WASHER FLANGE TO SHAFT
128
SCREW FLANGE TO SHAFT
132
SHIFTING CYLINDER P.T.O.
133
BUSHING
134
GROOVED RING
135
SEALING CORD
136
PROTECTIVE CAP
139
YOKE OPERATING ROD,K 202311
139
YOKE , Replaced By: A6209960001
143
PIN
147
PIN SHIFTING CYLINDER TO TRANSMISSION CASE
150
WASHER , Replaced By: N000125010532
999
P.T.O.
999
P.T.O.
999
SHAFT , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852601138, +001A3852640326, +001N001481006027
999
COVER
999
CASE , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852640801, +001A3852640487, +001N001481005020
999
SHIFTING FORK , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852640326, +001A3852601138, +001N001481006027
999
DRIVE SHAFT
999
CASE , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852640801, +001A3852640487, +001N001481005020
999
STUD P.T.O. HOUSING
999
NUT COVER TO FLANGE
999
COTTER PIN BRACKET TO SHIFT LEVER
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SPRING WASHER CAB FLOOR
999
NUT BRACKET TO TELESCOPIC TUBE,K 142858
999
CLAMPING SLEEVE
999
CLAMPING SLEEVE CRANK TO BUSHING
