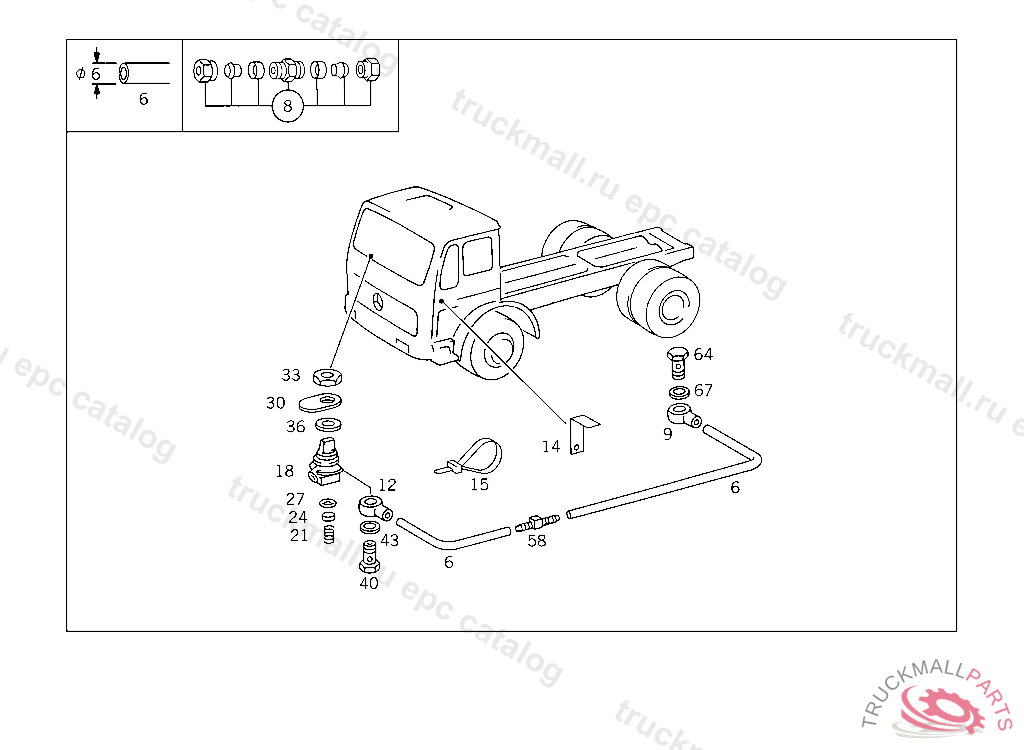

Поз.
Артикул
Описание
6
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
9
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
12
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
14
BRACKET LINE MOUNTING
15
LOOM TIE LINE MOUNTING
18
VALVE 3/2-WAY WABCO
18
VALVE 3/2-WAY BOSCH
21
SPRING INSIDE WABCO
24
SEAL RING INSIDE WABCO
27
SEAL RING TOP WABCO
30
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
33
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
36
WASHER AT TWO-WAY VALVE
40
HOLLOW SCREW LINE CONNECTION
43
SEAL RING , Replaced By: N007603010110
58
CONNECTOR
64
HOLLOW SCREW HEATING CONNECTION
67
SEAL RING LINE CONNECTION
