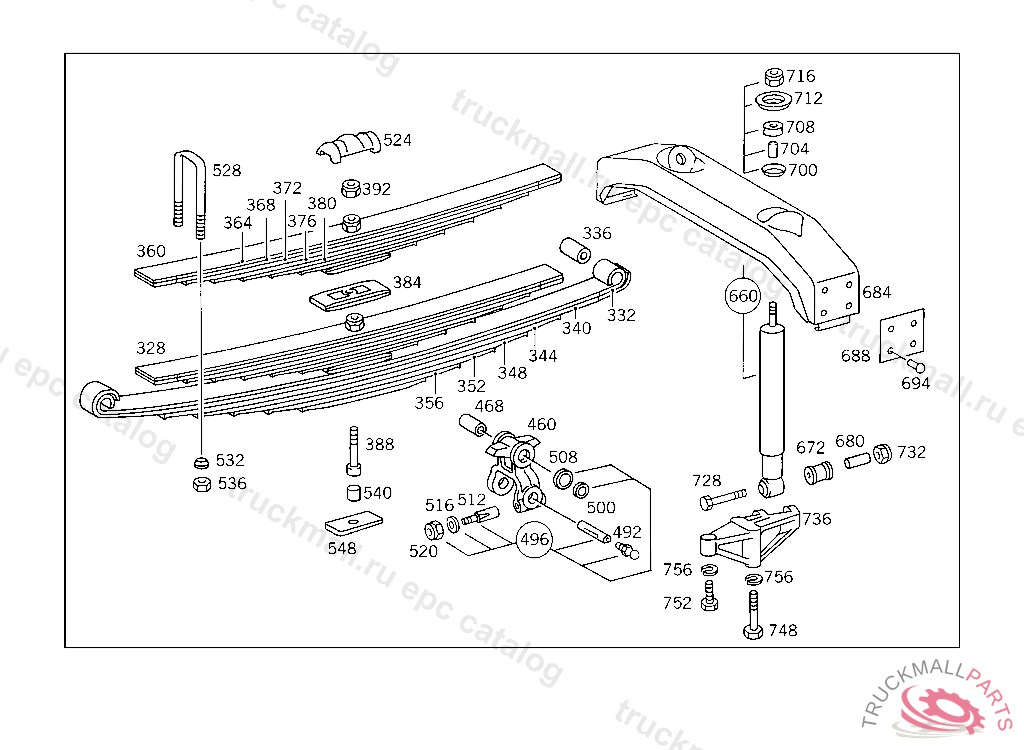

Поз.
Артикул
Описание
328
REAR SPRING 6-LEAF,WITH 5-LEAF HELPER SPRING, MODEL 383.1,DELIVER ADDITIONALLY: 1X SPRING BOLT 004626 012156 UP TO CHASSIS 4 889187, SEE SERVICE INFORMATION 32/8
332
SPRING LEAFNO.1,4 695194
336
BUSHING
336
BUSHING
336
BUSHING , Replaced By: A3523250150
340
SPRING LEAFNO.2,4 695194
344
SPRING LEAFNO.3
348
SPRING LEAFNO.4
352
SPRING LEAFNO.5
356
SPRING LEAFNO.6
360
HELPER SPRING 5-LEAF
364
SPRING LEAFNO.1
368
SPRING LEAFNO.2
372
SPRING LEAFNO.3
376
SPRING LEAFNO.4
380
SPRING LEAFNO.5
384
SPACER
388
SPRING BOLTM 12X230
392
NUT , Replaced By: N910113012005
460
SHACKLE REAR SPRING SUSPENSION
468
BUSHING
468
BUSHING
468
BUSHING , Replaced By: A3523250150
492
GREASE NIPPLE PROTECTIVE TUBE
496
SHACKLE PIN (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET
496
REPAIR KIT , Replaced By: A3853200065
500
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
500
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
508
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
512
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
516
WASHER , Replaced By: N000125010532
520
NUT , Replaced By: N910113010000
524
PLATE REAR SPRING TO REAR AXLE
524
PLATE REAR SPRING TO REAR AXLE
528
U-BOLT , Replaced By: A3853511425
528
U-BOLT , Replaced By: A6173511025
528
U-BOLT REAR AXLE TO TO REAR SPRINGS 440 MM
532
WASHER REAR SPRING TO REAR AXLE
536
NUT , Replaced By: N308673020002
540
SHEAR BUSHING REAR SPRING,4 4342374 889187
548
PAD BETWEEN SHOCK ABSORBEER BRACKET AND FRONT AXLE 10 MM
660
SHOCK ABSORBER (PARTS KIT)
672
RUBBER BUFFER , Replaced By: A0003233144
680
SPACER TUBE
684
CROSS MEMBER SHOCK ABSORBER
684
CROSS MEMBER , Replaced By: A3853100440
688
SHIM CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS
694
RIVET REAR CROSS MEMBER 12X42 MM
700
RETAINER SHOCK ABSORBER,BOTTOM
704
SPACER TUBE
708
RUBBER BUFFER SHOCK ABSORBER,BOTTOM
712
RETAINER SHOCK ABSORBER,BOTTOM
716
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
728
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
732
NUT , Replaced By: N913004020003
736
BRACKET LEFT SHOCK ABSORBER, UP TO CHASSIS 4 434076,FROM CHASSIS 4 434077 SEE SERIE
736
BRACKET RIGHT SHOCK ABSORBER, UP TO CHASSIS 4 434076,FROM CHASSIS 4 434077 SEE SERIE
748
SCREW BRACKET TO SPRING SADDLE M 14X1.5X110
752
SCREW , Replaced By: N308676014013
756
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
CONSOLE , Replaced By: A6173200178
