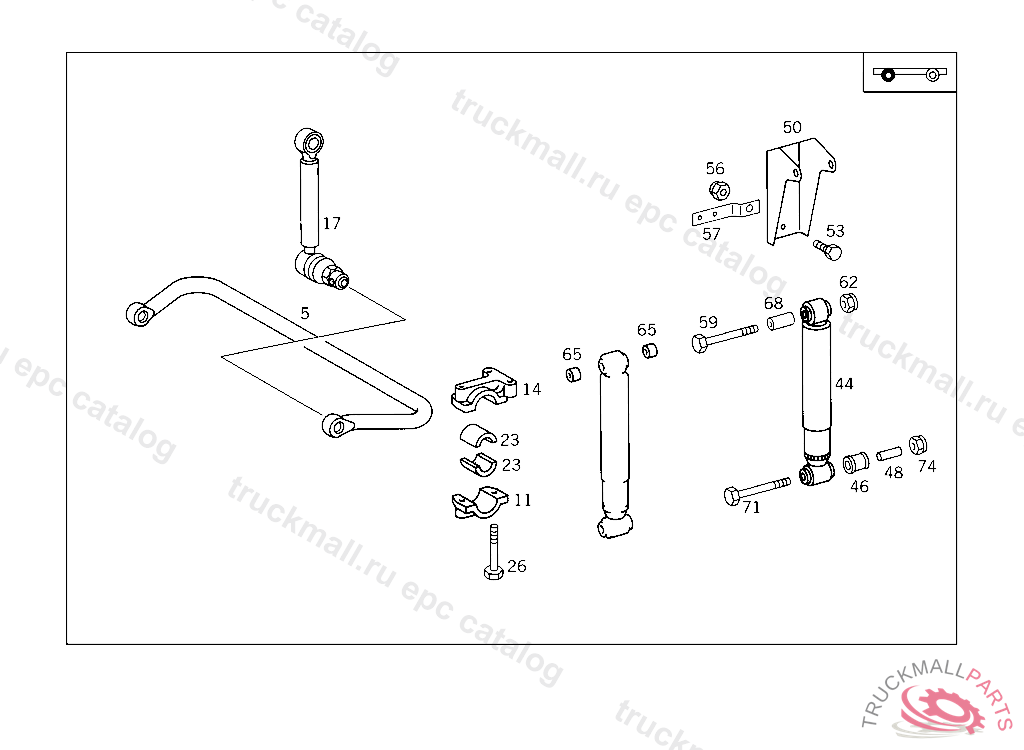

Поз.
Артикул
Описание
5
TORSION BAR FRONT AXLE
11
BEARING SHELL TORSION BAR TO BEARING BRACKET,K 054777
11
COVER TORSION BAR
14
BEARING BRACKET TORSION BAR,FRONT,K 054777
14
BEARING BRACKET TORSION BAR,FRONT
17
LINK RIGHT,D 209975
17
LINK LEFT,D 209975
17
LINK , Replaced By: A3823230316
17
LINK LEFT,D 209974
17
LINK , Replaced By: A3823238016
17
LINK , Replaced By: A3823237916
23
RUBBER MOUNTING TORSION BAR,FRONT,K 054777
23
RUBBER MOUNTING ,D 005411
26
SCREW ENGINE TO ENGINE FRONT SUPPORT
44
SHOCK ABSORBER ,D 188804
44
SHOCK ABSORBER , Replaced By: A3823237300
46
RUBBER MOUNTING
48
BUSHING
50
SUPPORT LEFT
50
SUPPORT RIGHT
53
SCREW BATTERY CASE
56
NUT , Replaced By: N910113014000
57
BRACKET BREATHER LINE TO REAR AXLE
59
SCREW SHOCK ABSORBER TO UPPER BEARING BRACKET,D 204382
62
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
65
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET,D 204382
68
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET
71
SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X95 MM
74
NUT , Replaced By: N910113016001
999
SCREW BRACKET TO FRAME
999
RUBBER MOUNTING LINK TO CONSOLE, FROM IDENT NO. K 054777 ALSO INSTALLED ON 5 545417,5 545468,5 549721,5 549753,5 551382,5 553458,5 556586,5 556951,5 557200,5 568184,5 568795,5 575157,5 575986.
999
SPACER WASHER LINK TO CONSOLE
