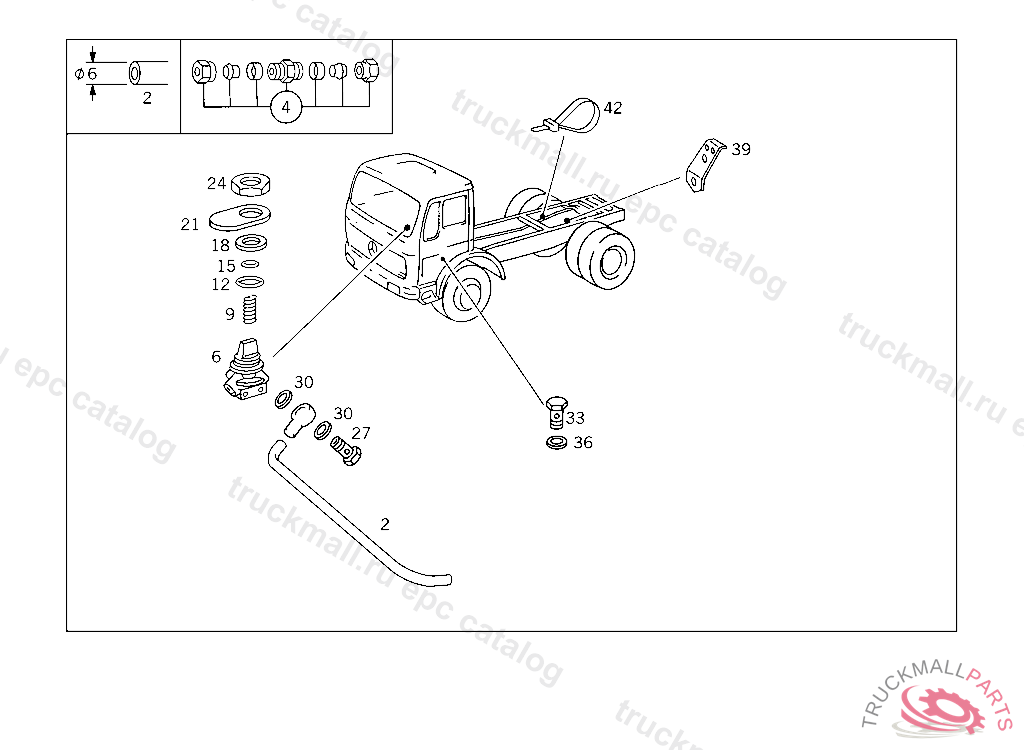

Поз.
Артикул
Описание
2
PLASTIC PIPE RISING PIPE 4X6 MM
2
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
4
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
6
VALVE 3/2-WAY WABCO
6
VALVE 3/2-WAY BOSCH
9
SPRING INSIDE WABCO
12
SEAL RING INSIDE WABCO
15
SEAL RING TOP WABCO
18
WASHER AT TWO-WAY VALVE
18
WASHER 3/2-WAY VALVE TO BRACKET
21
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
24
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
27
HOLLOW SCREW LINE CONNECTION
30
SEAL RING , Replaced By: N007603010110
33
HOLLOW SCREW HEATING CONNECTION
36
SEAL RING LINE CONNECTION
39
BRACKET LINE MOUNTING
42
LOOM TIE LINE MOUNTING
