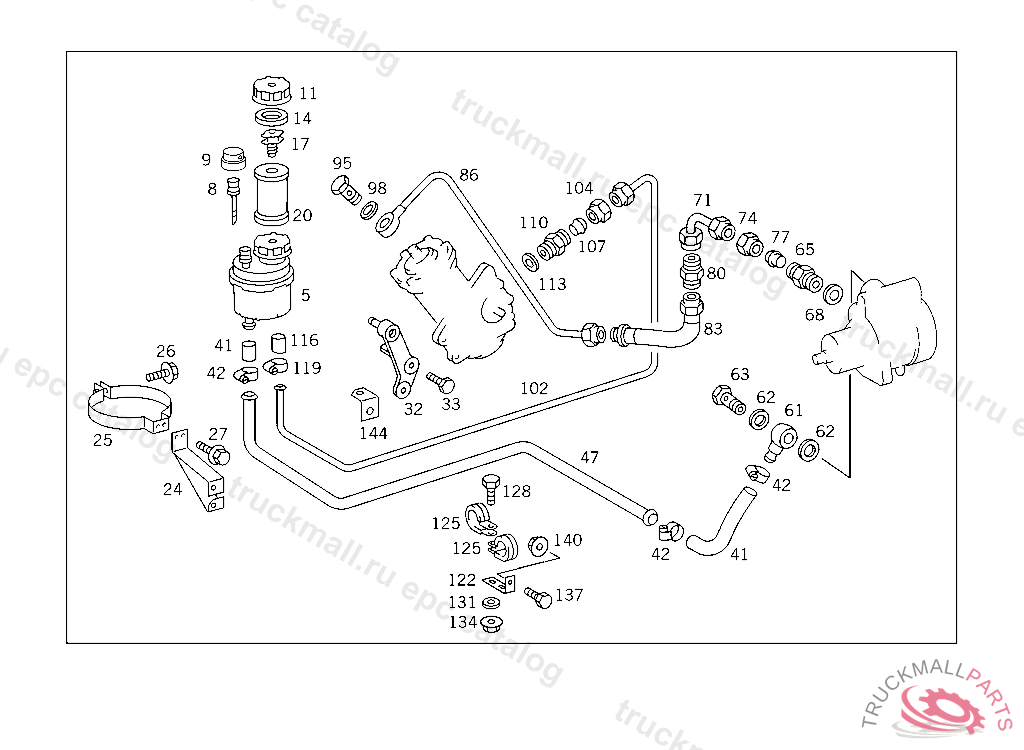

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
9
PROTECTIVE CAP
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
26
SCREW , Replaced By: N910105006005
26
SCREW OVERLOAD PROTECTOR TO BRACKET
32
BRACKET AT STEERING GEAR
33
SCREW , Replaced By: N910105010009
33
SCREW BRACKET TO SIDE MEMBER
41
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
42
CLAMP25-40X13 MM
42
CLAMP25-40X13 MM
42
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,998553
47
LINE FROM OIL TANK TO SUCTION LINE
61
LINE SUCTION LINE TO OIL PUMP
62
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
63
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
65
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
68
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
68
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
71
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
74
UNION NUT LINE CONNECTION, Replaced By: N000000006239
77
GLAND , Replaced By: A0019901967
80
CONNECTION FITTING , Replaced By: A0049971772
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
83
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
86
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
86
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
95
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
95
HOLLOW SCREW , Replaced By: N915036010108
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
SEAL RINGTO 000 553 03 05,000 553 18 05,
104
UNION NUT LINE CONNECTION
107
GLAND LINE CONNECTION
110
SCREW-IN FITTING RETURN LINE TO STEERING
110
SCREW-IN FITTING OIL LINE CONNECTION
113
SEAL RING VALVE TO VALVE,K 025179
113
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
116
HOSE HIGH PRESSURE
116
HOSE , Replaced By: A3859971682
119
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
119
CLAMP , Replaced By: N000000000667
122
BRACKET DELIVERY AND SUCTION LINES TO FRAME
122
BRACKET FUEL LINE
125
CLAMP LINES TO BRACKET
125
CLAMP DELIVERY AND SUCTION LINES TO FRAME
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
125
CLAMP DELIVERY AND SUCTION LINES TO FRAME
125
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
128
SCREW , Replaced By: N910105006005
128
SCREW OVERLOAD PROTECTOR TO BRACKET
131
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
134
NUT AT FILTER BRACKET
134
NUT , Replaced By: N913004006001
137
SCREW LEFT CONSOLE TO FRAME M 12X1.5X50, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
137
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
137
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
137
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
137
SCREW BRACKET TO FRAME M 12X35
140
NUT STRAP TO SUPPORT
140
NUT , Replaced By: N910113012003
999
FITTING SUCTION LINE TO OIL PUMP
999
FITTING DELIVERY LINE TO PUMP
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP, NOT USED
999
SCREW COVER TO SPRING SADDLE
999
SCREW BEARING BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO SIDE MEMBER
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT BRACKET TO LEFT SIDE MEMBER
