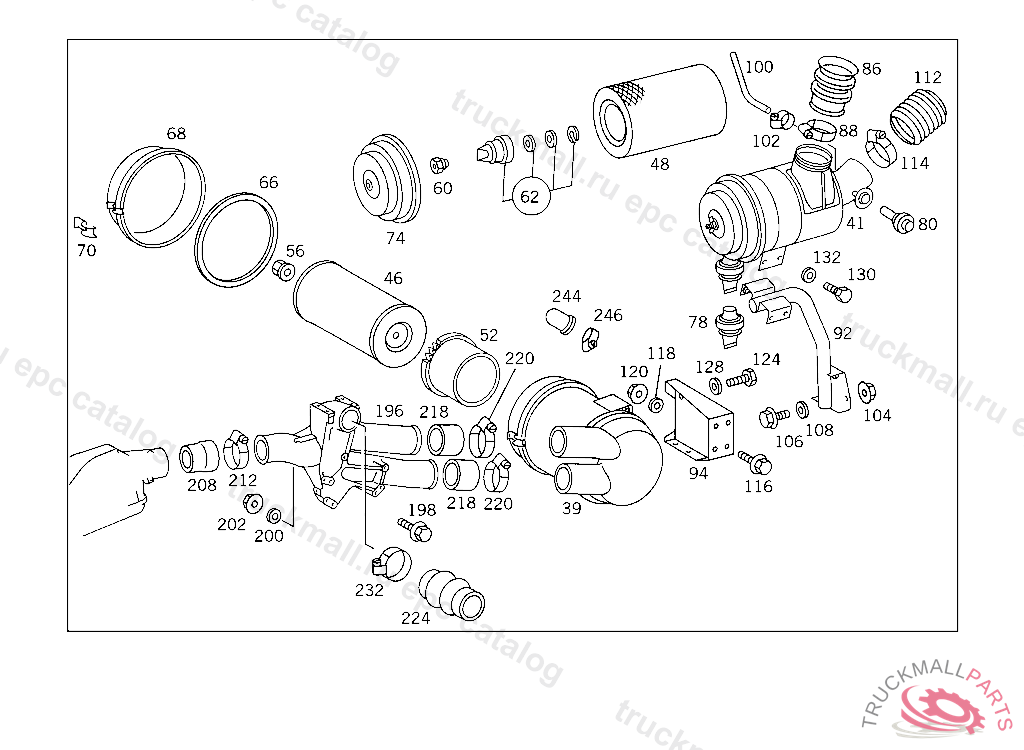

Поз.
Артикул
Описание
39
AIR CLEANER
39
AIR CLEANER
46
FILTER ELEMENT AIR CLEANER
52
FILTER BOWLTO 376 090 96 01CICLONIZADOR
52
AIR BAFFLE AIR CLEANER
66
GASKET AIR CLEANER BOWL
68
FILTER BOWL LOWER PART
70
FASTENER
94
SUPPORT
116
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
116
SCREW BRACKET TO FRAME M 12X35
116
SCREW EXHAUST PIPE TO BRACKET
116
SCREW CONSOLE TO FRAME M 12X40, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
118
WASHER
120
NUT STRAP TO SUPPORT
120
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
124
SCREW , Replaced By: N910105010009
128
WASHER GROUND CABLE
130
SCREW , Replaced By: N910142008009
130
SCREW LINES TO BRACKET
196
SUPPORT ,995 752, Replaced By: A6825207333, +003N000933010174
196
SUPPORT AIR INTAKE
198
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
198
SCREW EXHAUST PIPE TO BRACKET
198
SCREW BRACKET TO CONSOLE M 12X1.5X65
198
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
198
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
198
SCREW , Replaced By: N304017010040
198
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
200
WASHER
200
WASHER BRACKET TO FRAME
202
NUT STRAP TO SUPPORT
202
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
208
HOSE FROM MUFFLER TO SUPPORT
212
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
212
CLAMP AIR INTAKE PIPE TO ENGINE "100"
218
HOSE TO OIL BATH AIR CLEANER
218
HOSE FROM SUPPORT TO PAPER AIR CLEANER
220
CLAMP AIR CLEANER TO SUPPORT
224
HOSE FROM MUFFLER TO ENGINE
232
CLAMP AIR INTAKE PIPE TO ENGINE "100"
