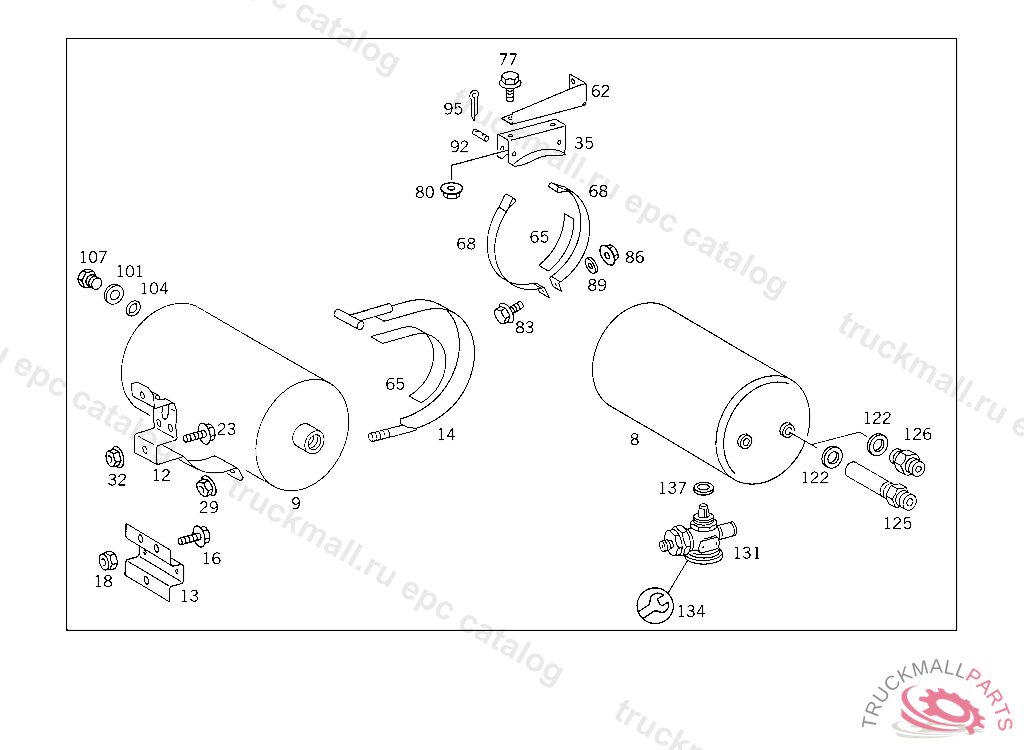

Поз.
Артикул
Описание
8
RESERVOIR AIR RESERVOIR III 20 L,999621
8
RESERVOIR AIR RESERVOIR III
9
RESERVOIR10L,206 MM,8.5 BAR
9
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
12
BRACKET AIR RESERVOIR
12
BRACKET , Replaced By: A9794300010
12
BRACKET , Replaced By: A6684302410
14
STRAP AIR RESERVOIR
23
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
23
SCREW , Replaced By: N304017010040
29
NUT STRAP TO SUPPORT
32
NUT EXHAUST PIPE TO SIDE MEMBER
32
NUT EXHAUST PIPE TO SIDE MEMBER
32
NUT , Replaced By: N910113010000
35
CONSOLE AIR RESERVOIR TO FRAME 20 L
62
BRACKET AIR RESERVOIR III 20 L
65
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
65
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
65
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
68
STRAP AIR RESERVOIR TO FRAME SIDE MEMBER
77
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
80
NUT STRAP TO SUPPORT
83
SCREW STRUT TO FRAME, LEFT
86
NUT EXHAUST PIPE TO SIDE MEMBER
86
NUT EXHAUST PIPE TO SIDE MEMBER
89
WASHER GROUND CABLE
92
PIN STRAP TO CONSOLE 20 L
95
COTTER PIN STRAP TO BRACKET
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
104
O-RING CHECK VALVE TO AIR RESERVOIR
107
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
125
CONNECTOR AIR RESERVOIR,CONNECTION: "10",1B 883558
126
FITTING VALVE TO VALVE
131
VALVE DRAIN 20 L
134
VALVE REPAIR KIT TO 384 432 72 07
137
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
