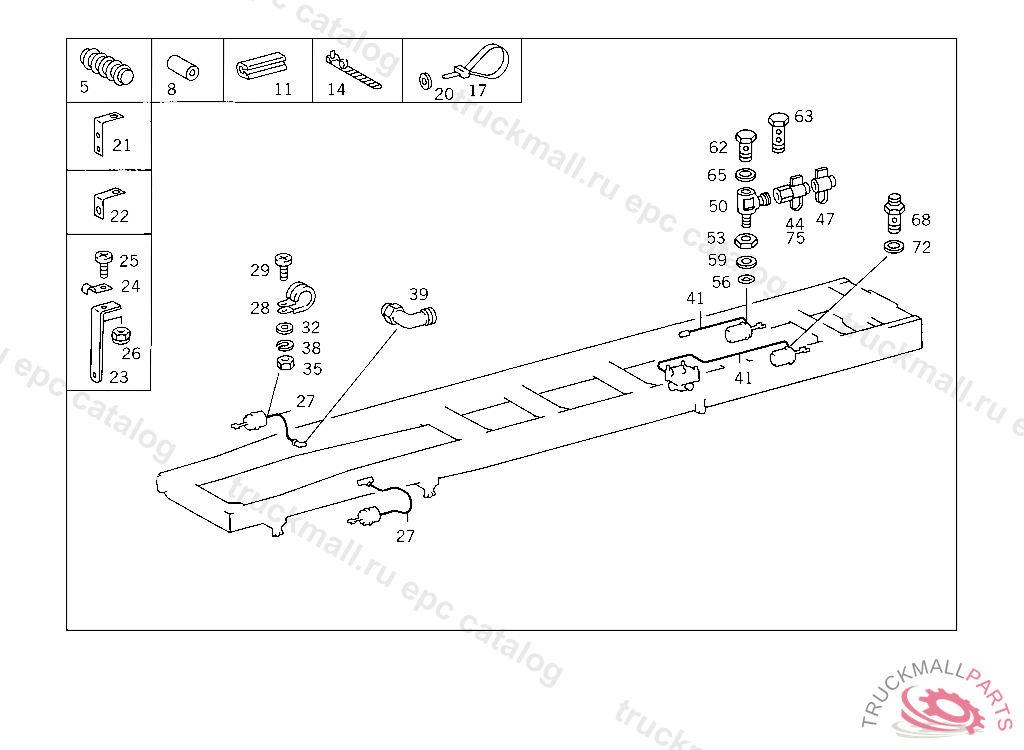

Поз.
Артикул
Описание
5
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
8
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
11
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
14
LOOM TIE
14
LOOM TIE , Replaced By: A1149970590
17
LOOM TIE LINE MOUNTING
17
LOOM TIE LINE MOUNTING
17
LOOM TIE ELECTRIC CABLE MOUNTING
17
LOOM TIE , Replaced By: A3459977390
17
LOOM TIE AIR INTAKE HOSE TO CLAMP
17
LOOM TIE
20
WASHER , Replaced By: A3609902340
21
BRACKET AT LEFT SIDE MEMBER
22
BRACKET AT BEARING BRACKET
23
BRACKET AT TRANSMISSION,B 965920
24
CLAMP , Replaced By: A3129952420
25
SCREW CAP TO BRACKET
26
NUT PUMP TO BRACKET
27
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
27
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
27
BRAKE HOSE , Replaced By: A3844207248
27
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
27
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
28
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
28
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
28
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
29
SCREW CAP TO BRACKET
32
WASHER PLUG SOCKET TO BRACKET
35
NUT
38
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
39
FITTING , Replaced By: A0019909871
41
BRAKE HOSE , Replaced By: A3844208148
41
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER
41
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
41
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
41
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
44
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
44
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
44
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
44
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
44
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
44
TEST CONNECTION
47
PLUG
50
T-FITTING AIR RESERVOIR,CONNECTION: "31"
53
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
56
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
59
THRUST RING LOCKING VALVE
59
THRUST RING LOCKING VALVE
59
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
62
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
63
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
65
SEAL RINGTO 006 997 00 72
68
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
72
SEAL RINGTO 006 997 00 72
75
TEST CONNECTION
75
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
