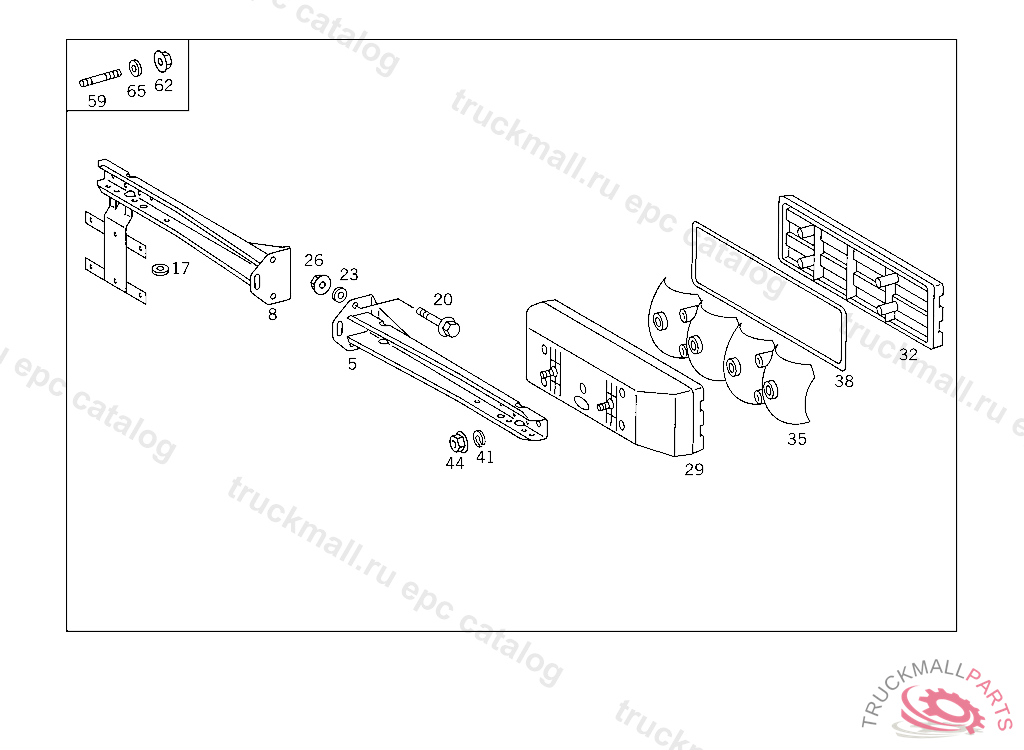

Поз.
Артикул
Описание
5
BRACKET LEFT
8
BRACKET RIGHT
17
WASHER , Replaced By: N000125008443
20
SCREW SUPPORT TO SIDE MEMBER M14X40
20
SCREW , Replaced By: N308676014008
23
WASHER
26
NUT PARTICLE FILTER M14
26
NUT , Replaced By: N910113014000
29
TAIL LAMP LEFT,SB055050
29
TAIL LAMP RIGHT,SB055050
32
LENSTO 688 544 73 03,74 03,94 03,96 03
35
REFLECTOR RIGHT
35
REFLECTOR LEFT
38
GASKET
41
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
NUT TAIL LAMP TO BRACKET
44
NUT , Replaced By: N910113010000
44
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
44
NUT EXHAUST PIPE TO SIDE MEMBER
62
NUT BRACKET TO BRACKET
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
