Поз.
Артикул
Описание
300

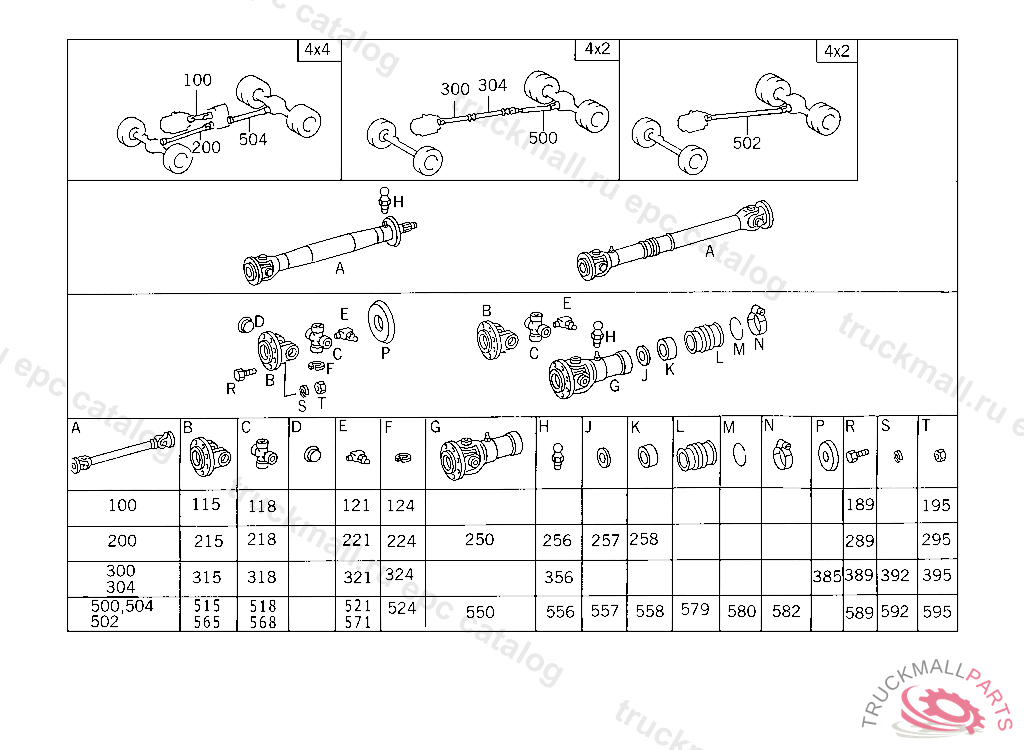

PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 730 MM, ONLY APPLICABLE TO DUMPER VEHICLES MODEL: 397.305&308 (LPK 1314&1417/36) WITH ZF-SIX-SPEED TRANSMISSION WITH P.T.O.
315
DRIVE FLANGE
318
UNIVERSAL JOINT CROSS WITH BUSHINGS
321
GREASE NIPPLE
321
GREASE NIPPLE
324
LOCK1.775 MM
324
LOCK1.750 MM
324
LOCK1.800 MM
324
LOCK1.725 MM
324
LOCK1.700 MM
324
LOCK1.825 MM
356
GREASE NIPPLE PROTECTIVE TUBE
385
PROTECTIVE CAP
389
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
395
NUT PROPELLER SHAFT TO REAR AXLE M 12X1,25
500
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1444 MM
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS WITH BUSHINGS
521
GREASE NIPPLE
521
GREASE NIPPLE
524
LOCK1.775 MM
524
LOCK1.725 MM
524
LOCK1.800 MM
524
LOCK1.750 MM
524
LOCK1.700 MM
524
LOCK1.825 MM
550
UNIVERSAL JOINT YOKE
556
GREASE NIPPLE INTERMEDIATE LEVER
557
GASKET
558
SEAL HOLDER
579
BOOT
580
CLAMPING RING BOOT TO PROPELLER SHAFT
582
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
582
CLAMP. LOOM TIE90-110
582
CLAMP
582
CLAMP HOSE 70-90X13 MM
589
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
595
NUT PROPELLER SHAFT TO REAR AXLE M 12X1,25
