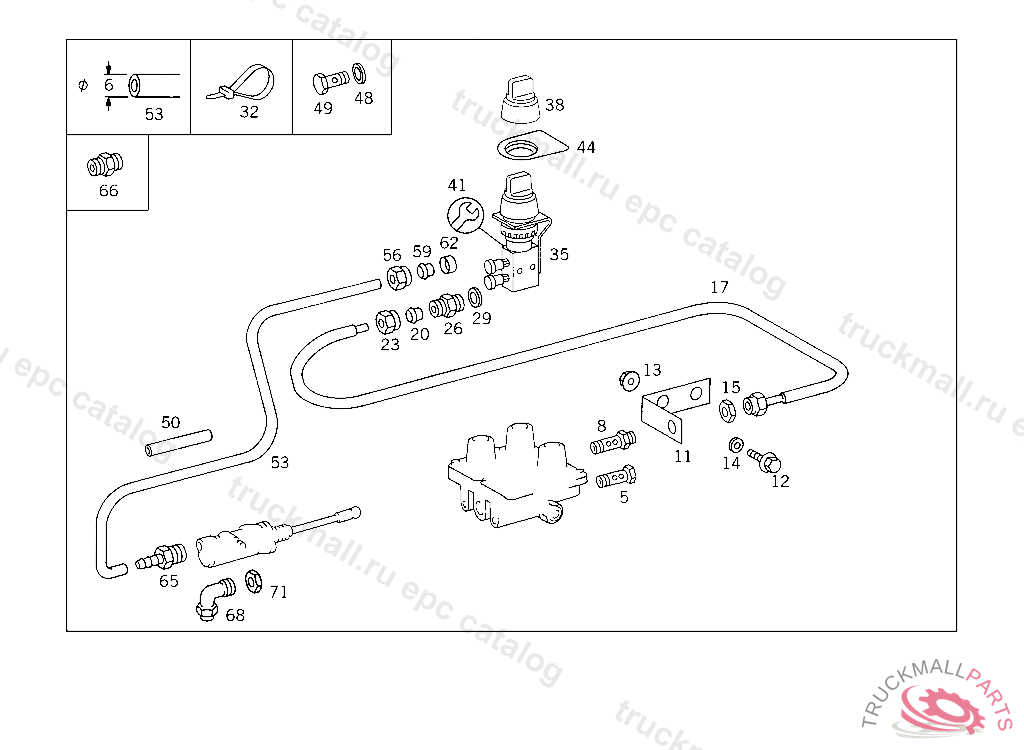

Поз.
Артикул
Описание
8
HOLLOW SCREW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
11
BRACKET BULKHEAD FITTING,D 091465
12
SCREW , Replaced By: N304017010002
12
SCREW EXHAUST PIPE TO SIDE MEMBER
13
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
13
NUT EXHAUST PIPE TO SIDE MEMBER
14
WASHER GROUND CABLE
15
NUT ,D 091466
17
BRAKE HOSE , Replaced By: N071435006002
20
GLAND , Replaced By: A0019901667
23
UNION NUT
26
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
29
SEAL RING LINE CONNECTION
32
LOOM TIE ELECTRIC CABLE MOUNTING
35
VALVE (THREE-WAY SOLENOID VALVE),047699 NO.8650I.......I I I II .......INO.9985I I I II I
35
VALVE
35
VALVE (THREE-WAY SOLENOID VALVE), NO.8650I.......I I I II .......INO.9985I I I II I
38
ACTUATING PARTTO 384 997 71 36
41
REPAIR KITTO 384 997 71 36
44
SHIM THREE-WAY VALVE,047699 NO.8650I.......I I I II .......INO.9985I I I II I
44
SHIM THREE-WAY VALVE,047698 NO.8650I.......I I I II .......INO.9985I I I II I
48
SEAL RING , Replaced By: N007603010110
49
HOLLOW SCREW LINE CONNECTION
50
INSULATING HOSE RED, ORDER BY THE METER
53
PLASTIC PIPE RISING PIPE 4X6 MM
56
UNION NUT
59
GLAND , Replaced By: A0019901667
62
SLEEVE LEAK LINE
65
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
