Поз.
Артикул
Описание

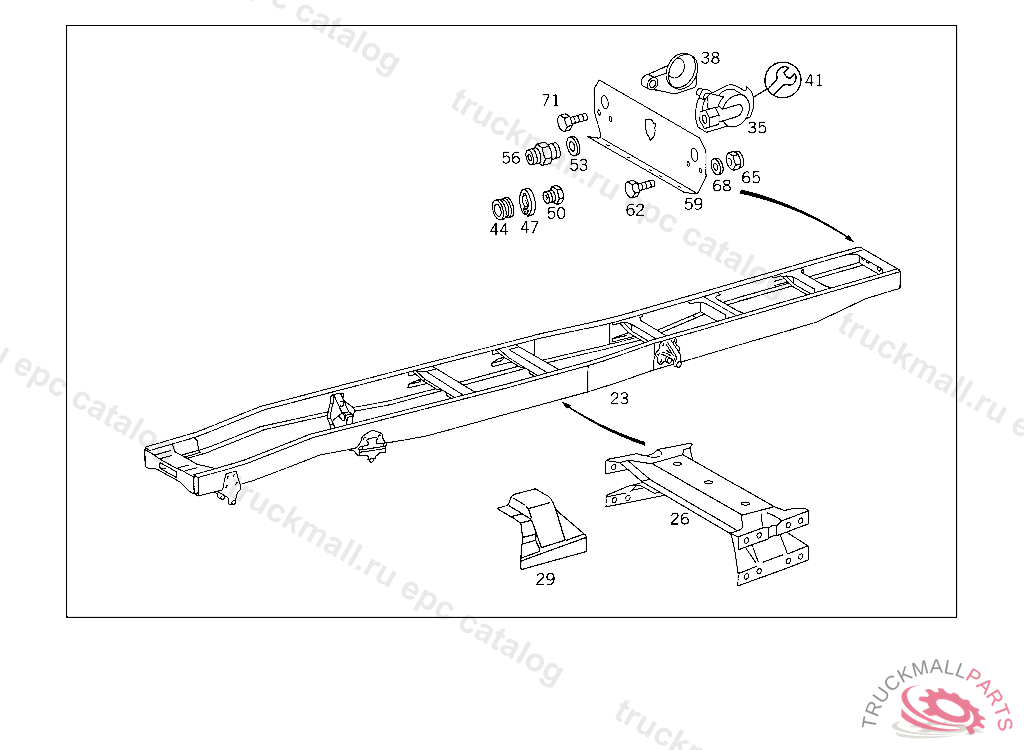

23
FRAME
23
FRAME
26
CROSS MEMBER
26
CROSS MEMBER
29
STRUT LEFT
35
BRAKE LINE COUPLING RIGHT WABCO
35
BRAKE LINE COUPLING LEFT WABCO
38
COVER BRAKE,YELLOW "WABCO"
38
COVER SUPPLY, RED "WABCO"
41
REPAIR KIT BRAKE LINE COUPLING "WABCO"
44
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
47
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
50
SCREW. UNION SCREW LINE CONNECTION
53
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
56
FITTING LINE CONNECTION
59
BRACKET TRAILER PLUG SOCKET TO SUPPORT BEHIND CAB
62
SCREW BRACKET TO FRAME M 8X35
65
NUT BRACKET TO BRACKET
68
WASHER TRAILER PLUG SOCKET TO BRACKET
71
SCREW BRACKET TO CROSS MEMBER M 8X45
999
NUT STRAP TO SUPPORT
999
NUT PARTICLE FILTER M14
999
HEXAGON HEAD BOLT. SCREW BEARING MOUNTING M 12 X 1,5 X 80
999
SCREW SUPPORT TO SIDE MEMBER M14X40
999
SCREW , Replaced By: N910105014010
999
SCREW STABILIZER TO BEARING
999
SCREW BRACKET TO REAR AXLE
999
RUBBER MOUNTING ,D 005411
999
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
999
BRACKET SHOCK ABSORBER AND STABILIZER,LEFT
999
BRACKET SHOCK ABSORBER AND STABILIZER,RIGHT
999
BRACKET AT SHOCK ABSORBER BRACKET
999
TORSION BAR REAR AXLE,D 005411
999
BUSHING
999
TORSION BAR REAR AXLE,D 005411
999
CONSOLE LEFT
999
CONSOLE RIGHT
999
LINK TORSION BAR TO BEARING BRACKET,D 005411
999
PLATE. WEB STABILIZER
999
ADJUSTING LEVER BRAKE LINE COUPLING TO FRAME
999
LINE FROM POWER STEERING PUMP TO HOSE
999
LINE LOW PRESSURE LINE ON PUMP
999
PLUG SOCKET WITH TRAILER SAE PLUG SOCKET 24 V
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
SCREW CONSOLE TO FRAME SIDE MEMBER M16X38
999
SERRATED WASHER BEARING BRACKET AND PLATE TO FRAME
