Поз.
Артикул
Описание
5

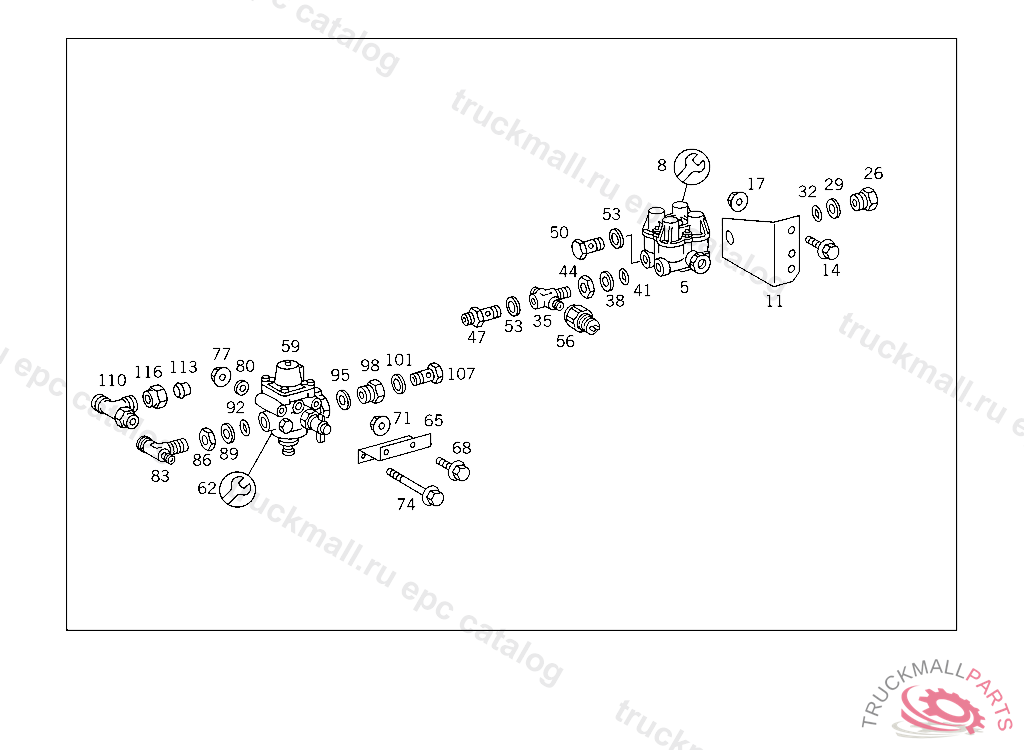

VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
5
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
5
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) "WABCO"
8
REPAIR KITTO 001 431 30 06
8
REPAIR KIT
8
REPAIR KITTO 345 431 74 06
11
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
14
SCREW , Replaced By: N910105012025
14
SCREW BEARING BRACKET TO SIDE MEMBER
17
NUT BRACKET TO SIDE MEMBER
17
NUT BRACKET TO BEARING BRACKET
26
FITTING AIR RESERVOIR,CONNECTION: "11"
29
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
32
O-RING CHECK VALVE TO AIR RESERVOIR
35
CONNECTOR FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
38
THRUST RING LOCKING VALVE
38
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
41
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
44
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
47
HOLLOW SCREW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
50
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
53
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
56
SWITCH SUPPLY PRESSURE,5 966147
59
PRESSURE REGULATOR , Replaced By: A0024314906
59
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
59
PRESSURE REGULATOR , Replaced By: A0024314306
59
PRESSURE REGULATOR , Replaced By: A0024318306
62
REPAIR KITTO 002 431 83 06
62
REPAIR KIT SEAL RING BOSCH,209
62
REPAIR KITTO 002 431 83 06, KNORR 90309
62
REPAIR KIT DIAPHRAGM PART BOSCH,209
62
REPAIR KIT VALVE KIT WABCO,5 148812
62
REPAIR KIT , Replaced By: A0004301107
65
BRACKET PRESSURE REGULATOR
65
BRACKET , Replaced By: A3944207086
68
SCREW , Replaced By: N304017010002
68
SCREW EXHAUST PIPE TO SIDE MEMBER
71
NUT EXHAUST PIPE TO SIDE MEMBER
71
NUT , Replaced By: N910113010000
74
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
74
SCREW , Replaced By: N910105008043
83
T-FITTING PRESSURE REGULATOR,CONNECTION: "1"
86
NUT CHECK VALVE TO AIR RESERVOIR
89
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
92
O-RING CHECK VALVE TO AIR RESERVOIR
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
98
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
101
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
