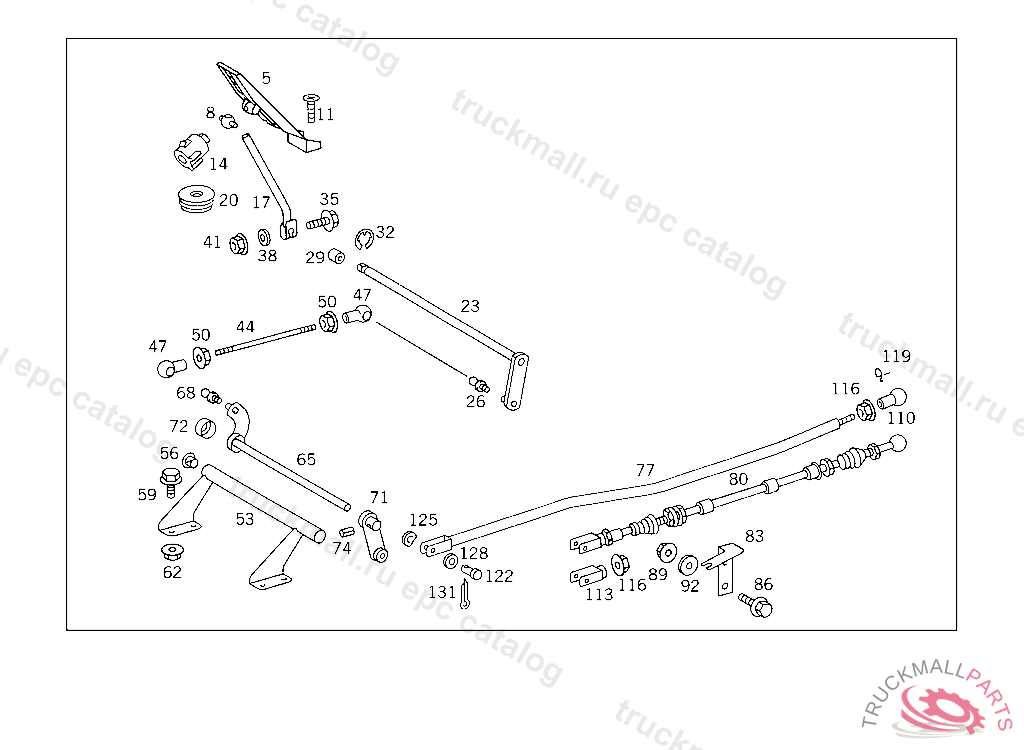

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL
8
JOINT
11
SCREW PEDAL TO CAB FLOOR M 6X16
14
STOP FULL THROTTLE
17
LEVER ACCELERATOR PEDAL
20
GROMMET CONTROL ROD COVERING
23
SHAFT CONTROL,5 552123
26
BALL PIVOT CONTROL SHAFT
29
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
32
LOCK PLATE
35
SCREW BRACKET TO CROSS MEMBER M 6X35
35
SCREW , Replaced By: N304017006012
38
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
NUT AT FILTER BRACKET
41
NUT , Replaced By: N913004006001
44
PULL ROD6X180X30/30
47
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
47
BALL SOCKET AT CONTROL LEVER
50
NUT BALL PIVOT TO LEVER
50
NUT BALL SOCKET TO ROD
53
GUIDE CONTROL SHAFT
56
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
59
SCREW , Replaced By: N910143008002
59
SCREW , Replaced By: N910142008001
59
SCREW PLUG SOCKET TO FRAME
62
NUT , Replaced By: N913004008001
62
NUT BRACKET TO BRACKET
65
SHAFT (CONTROL SHAFT)
68
BALL PIVOT CONTROL SHAFT
71
LEVER (CONTROL LEVER)
72
COVERING
74
CLAMPING SLEEVE CONTROL LEVER TO CONTROL SHAFT
77
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE,5 4232975 573246
110
BALL SOCKET ROD TO BALL PIVOT
116
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
116
NUT
119
SECURING CLIP. CIRCLIP
122
PIN ROD TO LEVER
125
SPRING WASHER , Replaced By: N000137008212
128
WASHER PULL ROD TO SHIFT LEVER
131
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
