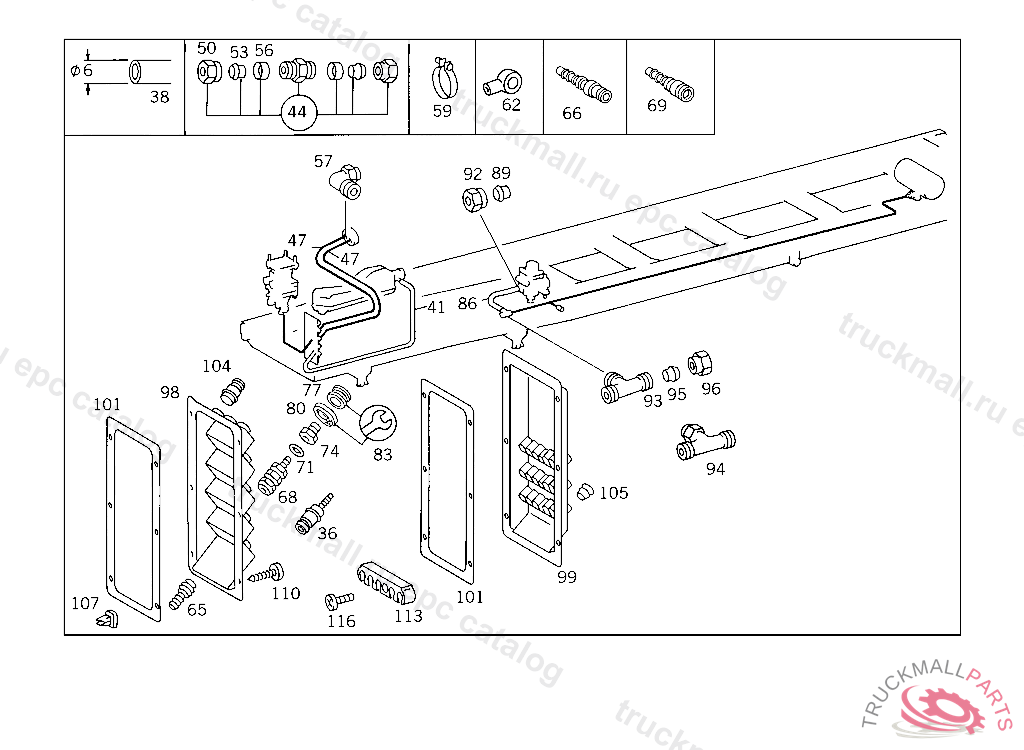

Поз.
Артикул
Описание
38
PLASTIC PIPE RISING PIPE 4X6 MM
38
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
41
HOSE CONNECTION PLATE,DISTRIBUTOR
44
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
47
HOSE
50
UNION NUT
53
GLAND , Replaced By: A0019901667
56
SLEEVE LEAK LINE
57
FITTING , Replaced By: A0019909871
57
FITTING , Replaced By: A0019909871
59
CLAMP LINE MOUNTING
62
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
62
BANJO UNION
66
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
69
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
74
SCREW. UNION SCREW , Replaced By: A0009973734
77
SEAL RING , Replaced By: A0009940747
80
LOCK , Replaced By: A0009945448
83
REPAIR KIT , Replaced By: A0309971748
86
LINE FROM PRESSURE REGULATOR TO T-FITTING
89
GLAND , Replaced By: A0019901667
92
UNION NUT
93
T-FITTING FROM PRESSURE REGULATOR TO T-FITTING
93
FITTING
95
GLAND , Replaced By: A0019901667
96
UNION NUT
99
CONNECTION PLATE AT FIRE WALL,K 063044
101
GASKET , Replaced By: A6734290280
104
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
105
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
107
TREENAIL FUSE BOX
110
SHEET METAL SCREW BRACKET TO FIRE WALL
113
PLATE COMPRESSED AIR LINE MOUNTING
116
SCREW PLATE TO BRACKET
116
SCREW FUSE BOX TO APPARATUS PLATE
