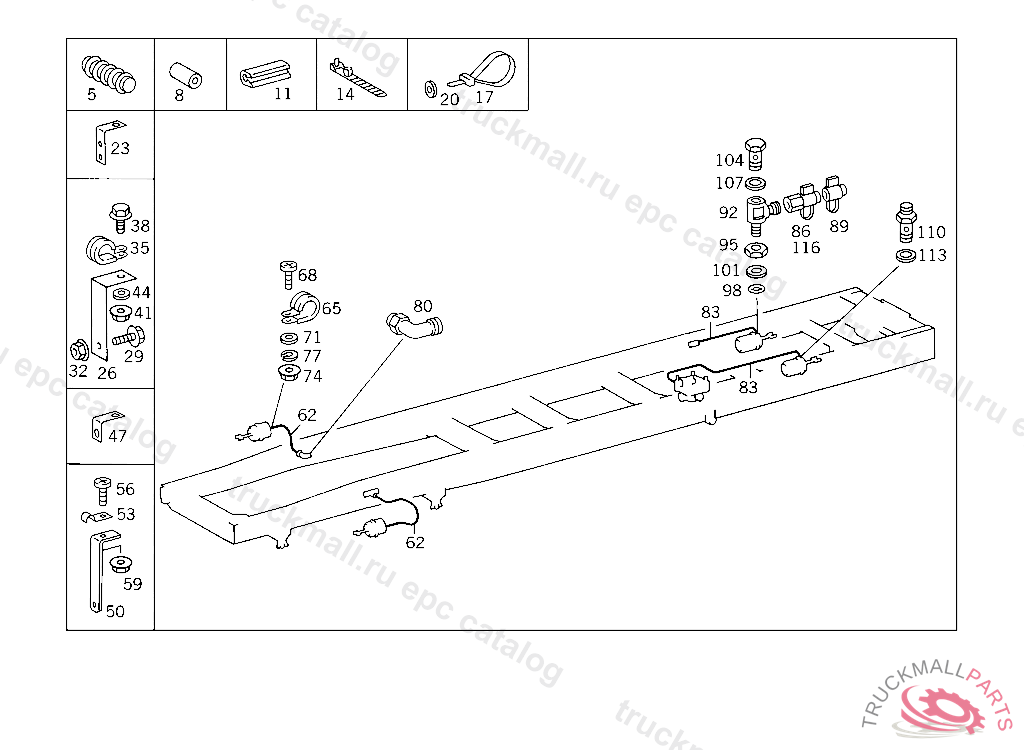

Поз.
Артикул
Описание
5
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
8
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
11
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
14
LOOM TIE
14
LOOM TIE , Replaced By: A1149970290
14
LOOM TIE , Replaced By: A1149970590
17
LOOM TIE , Replaced By: A3459977390
17
LOOM TIE LINE MOUNTING
17
LOOM TIE LINE MOUNTING
17
LOOM TIE LINE MOUNTING 280 MM
17
LOOM TIE
17
LOOM TIE AIR INTAKE HOSE TO CLAMP
17
LOOM TIE , Replaced By: A0019978490
20
WASHER , Replaced By: A3609902340
23
BRACKET AT LEFT SIDE MEMBER
47
BRACKET AT BEARING BRACKET
47
BRACKET AT CROSS MEMBER,D 030553
50
BRACKET AT TRANSMISSION,B 965920
53
CLAMP , Replaced By: A3129952420
56
SCREW CAP TO BRACKET
59
NUT AT FILTER BRACKET
59
NUT , Replaced By: N913004006001
62
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
62
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
62
BRAKE HOSE , Replaced By: A3844207248
62
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
62
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
65
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
65
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
65
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
68
SCREW CAP TO BRACKET
71
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
NUT BALL SOCKET TO ROD
74
NUT BALL PIVOT TO LEVER
77
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
80
FITTING , Replaced By: A0019909871
83
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER
83
BRAKE HOSE , Replaced By: A3844208148
86
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
86
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
86
TEST CONNECTION
86
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
89
PLUG
92
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
95
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
THRUST RING LOCKING VALVE
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
113
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
116
TEST CONNECTION
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
