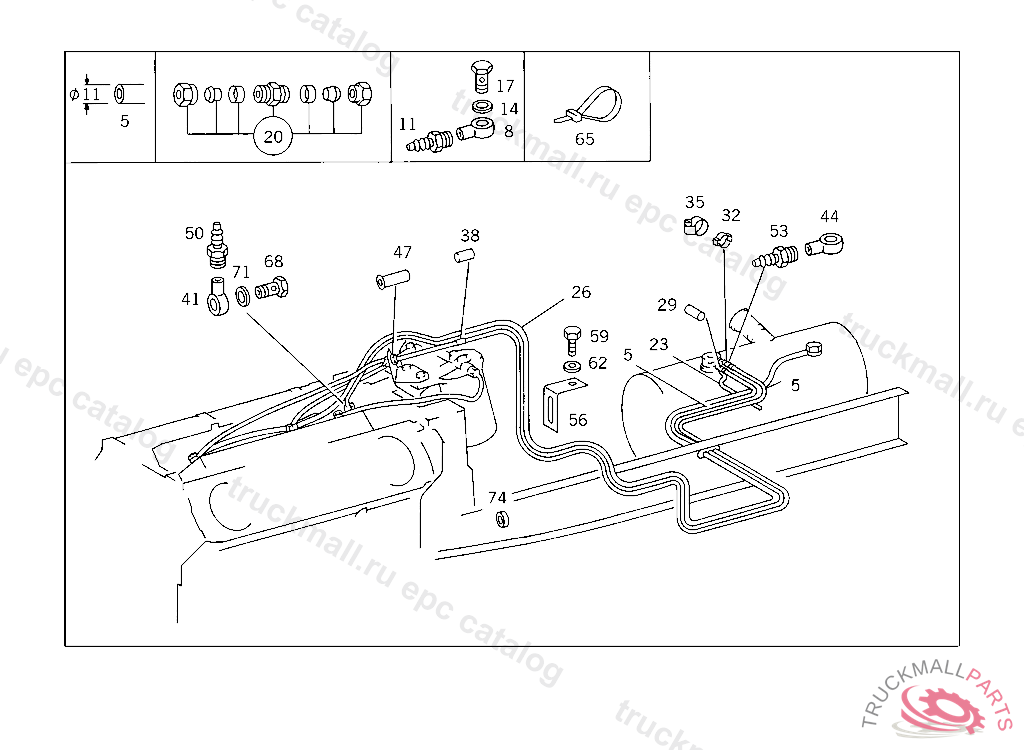

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
BANJO UNION , Replaced By: N000000000363
8
BANJO UNION FEED
11
FITTING FEED LINE AND RETURN LINE
14
SEAL RING FUEL LINE TO FEED PUMP
17
BANJO BOLT
17
HOLLOW SCREW , Replaced By: N915036010108
20
FITTING (PARTS KIT),LINE RUPTURE
23
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
23
PLASTIC PIPE AERATION, ORDER BY THE METER
26
PLASTIC PIPE RISING PIPE 4X6 MM
26
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
29
HOSE LEAK LINE
32
CLIP LEAK LINE
35
CLAMP , Replaced By: N000000000665
38
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
41
BANJO UNION FEED
41
BANJO UNION , Replaced By: N000000000363
44
BANJO UNION , Replaced By: N000000000364
44
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
47
SLEEVE FEED
50
FITTING FEED LINE AND RETURN LINE
53
FITTING LINE CONNECTION TO FIRE WALL,5 726664
56
BRACKET FUEL LINE TO BELL HOUSING
59
SCREW , Replaced By: N910105010009
59
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
62
WASHER , Replaced By: N000125010532
65
LOOM TIE LINE MOUNTING
65
LOOM TIE LINE MOUNTING 280 MM
68
BANJO BOLT
68
HOLLOW SCREW , Replaced By: N915036010108
71
SEAL RING FUEL LINE TO FEED PUMP
74
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
