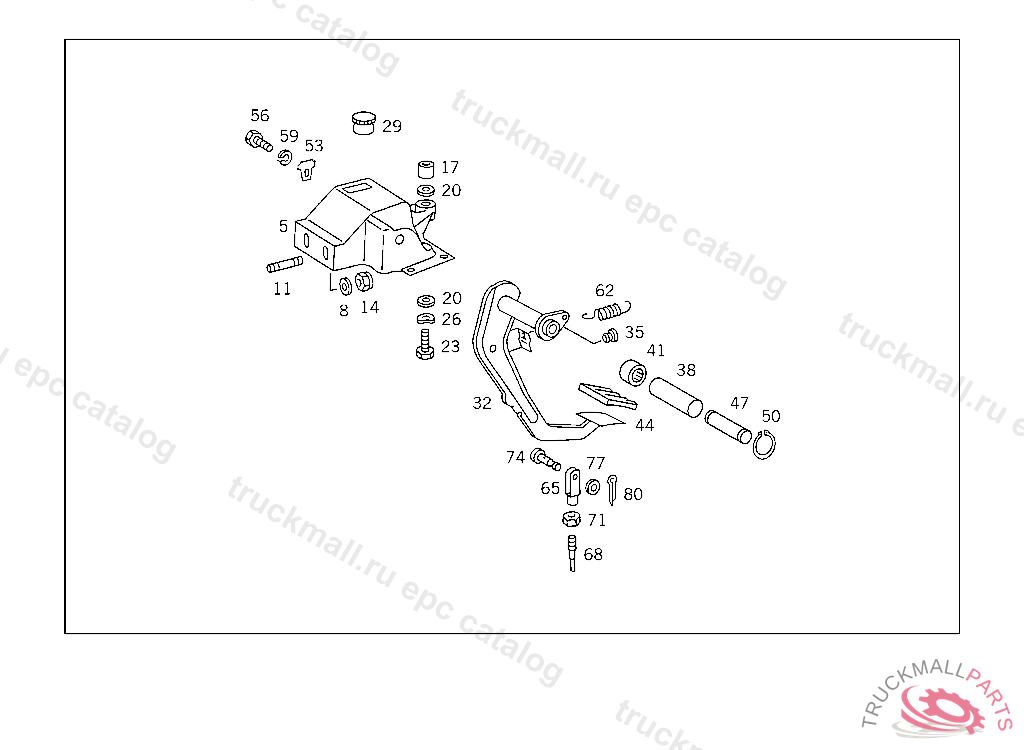

Поз.
Артикул
Описание
5
BEARING BRACKET BRAKE
8
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
11
STUD BOLT BRACKET TO CROSS MEMBER
14
NUT BRACKET TO BRACKET
14
NUT , Replaced By: N913004008001
17
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
20
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
23
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
23
SCREW RUBBER BUFFER TO CONSOLE
26
SPRING WASHER STEERING COLUMN BRACKET TO CAB
29
PLUG , Replaced By: A0009972020
29
PLUG CAB FLOOR SEALING
29
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
32
PEDAL BRAKE
35
STOP
38
SPACER TUBE
41
NEEDLE BEARING
44
PAD BRAKE
47
PIVOT PIN PEDAL TO BEARING BRACKET
50
LOCK RING
53
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
56
SCREW , Replaced By: N304017006018
56
SCREW , Replaced By: N304017006018
59
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
62
SPRING BRAKE PEDAL RELEASE SPRING
65
YOKE OPERATING ROD,K 202311
68
ROD , Replaced By: A9702900039
71
NUT OPERATING ROD
71
NUT , Replaced By: N304035008001
74
PIN ROD TO BRAKE PEDAL
77
WASHER BRACKET TO CROSS MEMBER
80
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
