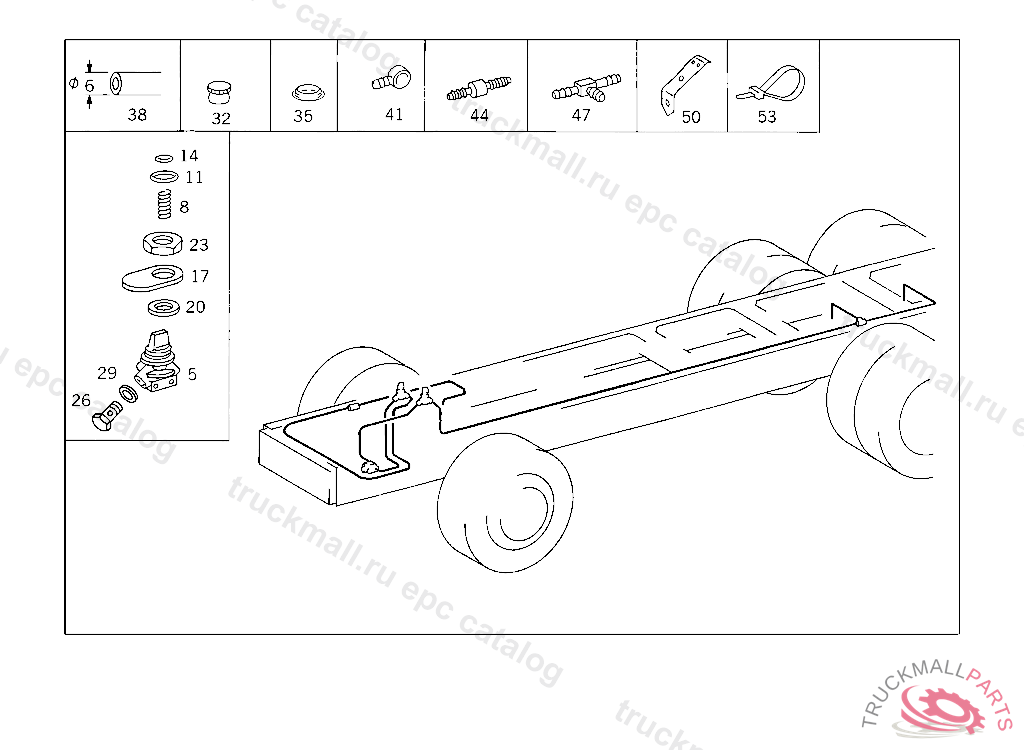

Поз.
Артикул
Описание
5
VALVE 3/2-WAY KNORR
5
VALVE 3/2-WAY VOSS
5
VALVE 3/2-WAY WABCO
5
VALVE 3/2-WAY BOSCH
8
SPRING INSIDE WABCO
11
SEAL RING INSIDE WABCO
14
SEAL RING TOP WABCO
17
UNIT IDENTIFICATION PLATE SYMBOL: LONGITUDINAL DIFFERENTIAL LOCK
20
WASHER AT TWO-WAY VALVE
23
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
26
HOLLOW SCREW LINE CONNECTION
26
HOLLOW SCREW HEATING CONNECTION
29
SEAL RING LINE CONNECTION
29
SEAL RING LINE CONNECTION
38
PLASTIC PIPE RISING PIPE 4X6 MM
38
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
41
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
41
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
44
CONNECTOR
50
BRACKET LINE MOUNTING
53
LOOM TIE LINE MOUNTING 280 MM
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
