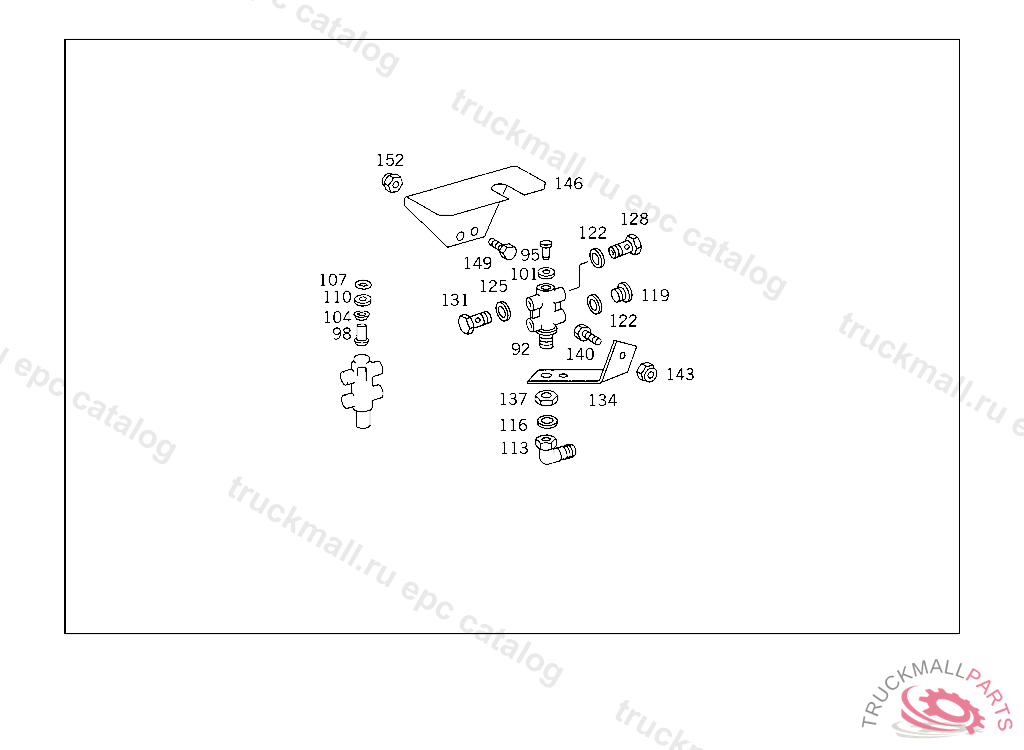

Поз.
Артикул
Описание
92
VALVE (CHECK VALVE) VOSS
92
VALVE (CHECK VALVE) SCHAEFER
95
VALVE TAPPETTO 002 429 96 44,VOSS
98
SEAL CONETO 003 429 12 44,SCHAEFER
101
SEAL RINGTO 002 429 96 44,VOSS
104
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
107
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
110
THRUST WASHERTO 003 429 12 44,SCHAEFER
113
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
116
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
119
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
122
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
125
SEAL RING FUEL LINE TO FEED PUMP
128
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
131
HOLLOW SCREW , Replaced By: N915036010108
134
BRACKET HEAT SHIELD
137
NUT CHECK VALVE TO AIR RESERVOIR
140
SCREW HAND PUMP TO BRACKET
140
SCREW EXHAUST PIPE TO SIDE MEMBER
143
NUT EXHAUST PIPE TO SIDE MEMBER
143
NUT , Replaced By: N910113010000
146
COVERING CHECK VALVE,5 298639
149
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
149
SCREW CLAMP TO BRACKET AND TO PIPE
152
NUT BRACKET TO BRACKET
152
NUT , Replaced By: N913004008001
999
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
