Поз.
Артикул
Описание

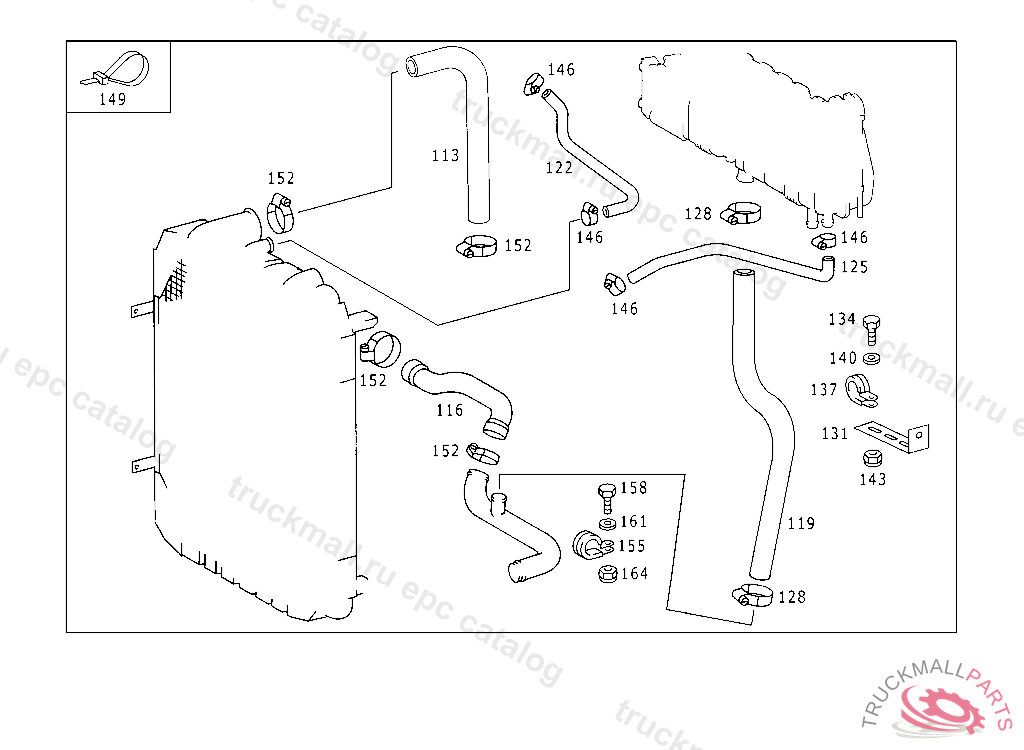

113
HOSE FROM RADIATOR TO THERMOSTAT,D 124754
116
HOSE BUBBLE SEPARATOR TO RADIATOR,D 124754
119
HOSE , Replaced By: N000000001784
122
HOSE
125
HOSE FROM EXPANSION TANK TO ENGINE 10X19X850
128
CLAMP , Replaced By: N000000000671
128
CLAMP
131
BRACKET LINE MOUNTING
134
SCREW CLAMP TO BRACKET
137
CLAMP
140
WASHER PLUG SOCKET TO BRACKET
143
NUT PUMP TO BRACKET
146
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
146
CLAMP HOSE TO FITTING AND TO OIL TANK
149
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
149
LOOM TIE COMPRESSED AIR LINE MOUNTING 105 MM
149
LOOM TIE CABLE TO ALTERNATOR
149
LOOM TIE
152
CLAMP HOSE TO RETARDER 60-80X13 MM
152
CLAMP , Replaced By: N000000000673
155
CLAMP BUBBLE SEPARATOR TO RADIATOR
155
CLAMP LINE MOUNTING
158
SCREW LINES TO BRACKET
161
WASHER TRAILER PLUG SOCKET TO BRACKET
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
