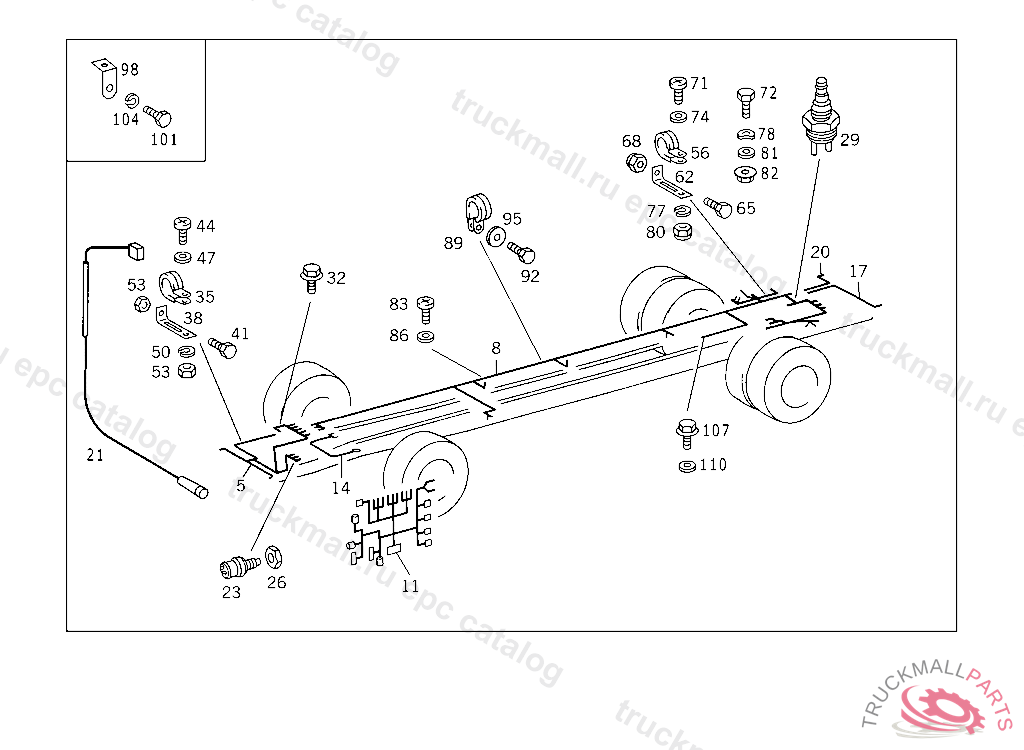

Поз.
Артикул
Описание
5
CABLE HARNESS MAIN CABLE HARNESS,D 124754D 177266
8
CABLE HARNESS ,D 124754D 177266
11
CABLE HARNESS RETARDER "VOITH"
23
SWITCH , Replaced By: A6935457109
26
NUT SWITCH
29
SWITCH STARTING INTERLOCK
29
SWITCH ENGINE SHUT-OFF
32
SCREW GROUND CONNECTION TO WINDOW SILL,B 959934
35
CLAMP STAY TO BRACKET
35
CLAMP SUCTION LINE TO CROSS MEMBER
35
CLAMP , Replaced By: A3829950701
38
BRACKET , Replaced By: A3184280240
41
SCREW BRACKET TO FRAME
44
SCREW BRACKET TO CROSS MEMBER
47
WASHER PLUG SOCKET TO BRACKET
50
LOCK WASHER CABLE TO FUSE BOX
53
NUT
56
CLAMP STAY TO BRACKET
62
BRACKET , Replaced By: A3184280240
65
SCREW LINES TO BRACKET
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
SCREW CABLE TO ALTERNATOR
74
WASHER PLUG SOCKET TO BRACKET
77
LOCK WASHER CABLE TO FUSE BOX
80
NUT PUMP TO BRACKET
86
WASHER PLUG SOCKET TO BRACKET
86
WASHER FUSE TO FUSE BOX
89
CLAMP , Replaced By: A3829950701
92
SCREW GROUND CABLE
95
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
