Поз.
Артикул
Описание

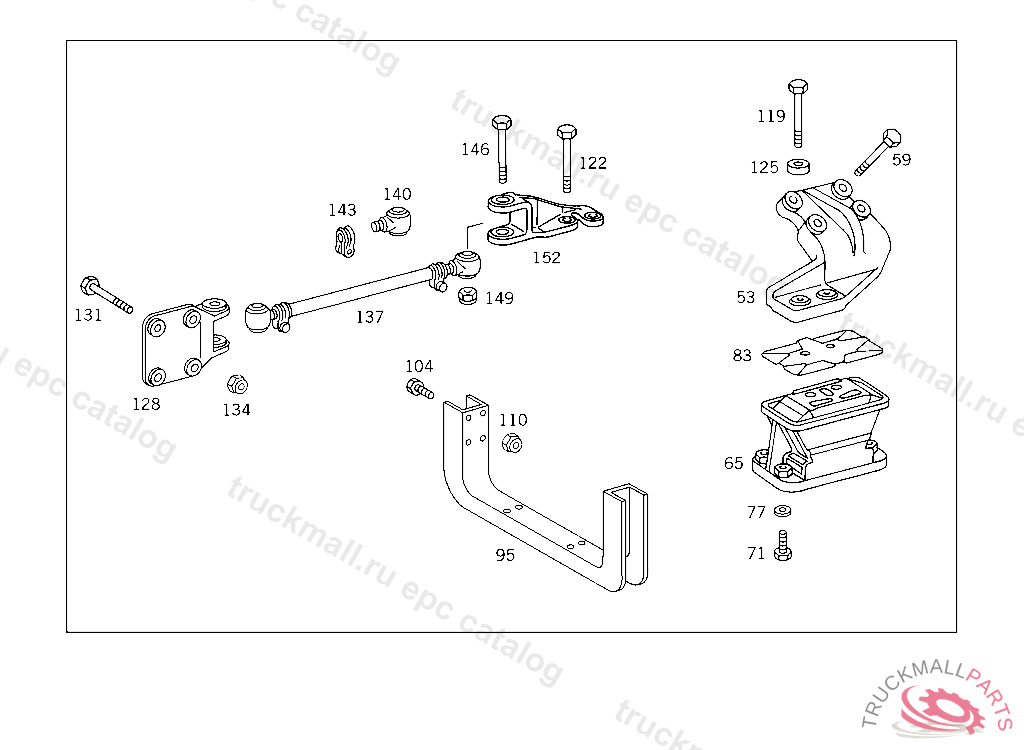

53
SUPPORTING ARM
53
SUPPORTING ARM
59
SCREW SUPPORTING ARM TO BELL HOUSING M 22X1.5X50
65
RUBBER MOUNTING REAR
65
RUBBER MOUNTING ON CLUTCH END
65
RUBBER MOUNTING REAR
65
RUBBER MOUNTING REAR
71
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
77
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
83
SCREENING PLATE REAR RUBBER MOUNTING
95
ENGINE CROSS MEMBER EXPANSION TANK
104
SCREW BRACKET TO FRAME
110
NUT , Replaced By: N910113014000
119
SCREW , Replaced By: N308676016007
122
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
125
WASHER CONSOLE TO FRAME
128
BRACKET ENGINE ALONGSIDE FIXING
131
SCREW BATTERY CASE
134
NUT , Replaced By: N910113014000
137
ROD ENGINE ALONGSIDE FIXING
140
ROD END LEFT TO 364 240 76 25
140
ROD END RIGHT TO 364 240 76 25
143
CLAMPTO 364 240 76 25
146
STUD PULL ROD TO BEARING BRACKET
149
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
152
BRACKET SHOCK ABSORBER TO BRACKET
