Поз.
Артикул
Описание

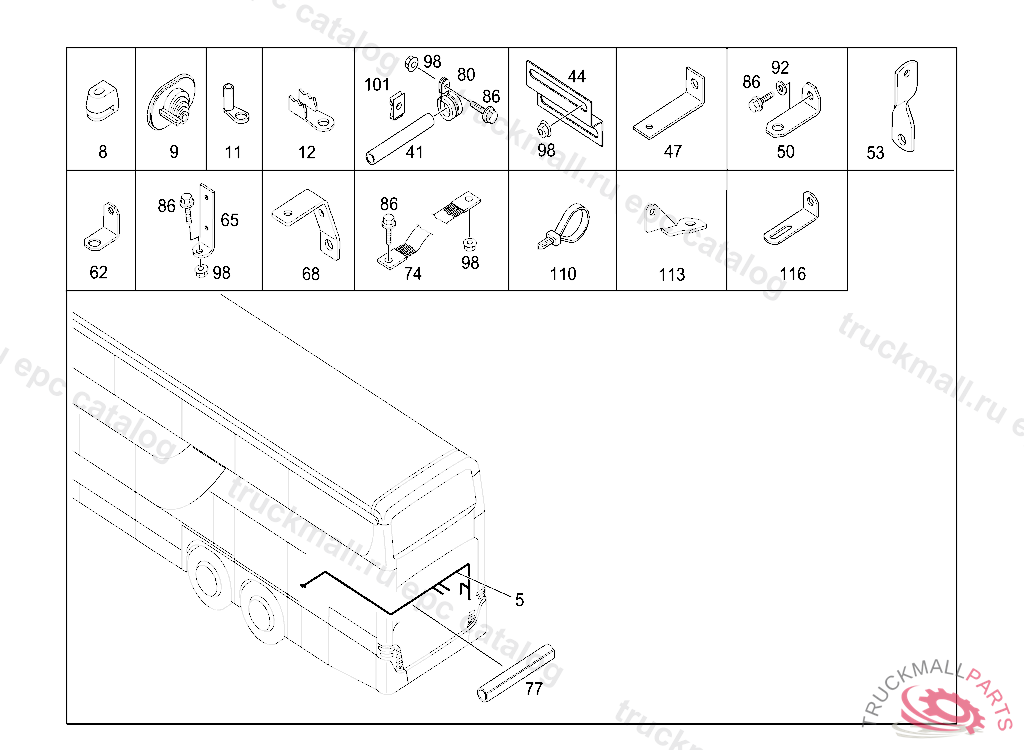

5
CABLE HARNESS ENGINE CABLE HARNESS OM 502 LA, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.12.2009
5
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS OM457LA EURO4
5
ELECTRIC CABLE ENGINE CABLE HARNESS OM 502 LA, FROM IDENT NO. WKK 410001 13 000046 ALSO INSTALLED ON 000009, 000043, 000044* STATE IDENT NO. WHEN ORDERING
5
ELECTRIC CABLE ENGINE CABLE HARNESS OM 502 LA, UP TO IDENT NO. WKK 410001 13 000045 EXCEPT FOR 000009, 000043, 000044* STATE IDENT NO. WHEN ORDERING
5
ELECTRICAL WIRING HARNESS ENGINE CABLE HARNESS MOTOR V8, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.01.2010
5
CABLE HARNESS ENGINE CABLE HARNESS OM457LA EURO4, Replaced By: A6325405713
8
CABLE GROMMET ALTERNATOR BRANCH-OFF
8
CABLE GROMMET. GASKETTO 011 154 50 02
8
GASKET
9
CABLE PASSAGE FOR CABLE HARNESS DIA.: 18MM (100X75MM)
11
CABLE SHOE12 - 95
12
CABLE SHOE8 - 50
41
BRACKET ENGINE COMPARTMENT
41
BRACKET ENGINE COMPARTMENT
41
BRACKET CABLE HARNESS RETARDER L1400
41
BRACKET ENGINE CABLE HARNESS
41
BRACKET INTARDER L450
41
BRACKET FAN COUPLING
44
"Z" SECTION60MM, Replaced By: A6279850349
47
BRACKET
50
BRACKET ENGINE CABLE HARNESS
53
BRACKET BRACKET TO HEAT EXCHANGER
62
BRACKET ENGINE CABLE HARNESS
65
BRACKET ALTERNATOR
68
BRACKET AT OIL PAN
74
GROUND STRAP24X3X450
77
HOSE I.D., 30MM, ORDER BY THE METER
80
CLAMP COOLING WATER HOSES
80
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
80
CLAMP DELIVERY AND SUCTION LINES TO FRAME
80
CLAMP HOSE TO FLANGE AND TO VALVE
80
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
80
CLAMP LINE MOUNTING
80
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
80
CLAMP10/20MM
80
CLAMP
80
CLAMP LINE MOUNTING 15-18 MM,V 207570
80
CLAMP10/15
80
CLAMP , Replaced By: A3829950701
86
SCREW , Replaced By: N914146006102
86
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
86
SCREW BRACKET AND CLAMP M6X20
86
SCREW , Replaced By: N910143008002
86
COMBINATION BOLT , Replaced By: N304017006016
86
SCREW BRACKET TO CAB REAR PANEL M 8X20
86
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
86
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
86
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
86
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
86
HEXAGON HEAD BOLT
86
SCREW PIPE ELBOW TO BRACKET M8X12
86
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
92
WASHER RETARDER 6.4
92
WASHER COMPRESSED AIR LINE TO BRACKET
92
WASHER BRACKET TO CAB REAR PANEL
92
WASHER LINE MOUNTING
98
NUT
98
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
98
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
98
NUT , Replaced By: N913023006001
98
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
98
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
101
LOCK. NUT , Replaced By: A0039941745
110
CABLE TIE , Replaced By: A0049971890
110
CABLE STRAP PLUG-IN CLIP L202MM
110
LOOM TIE
113
BRACKET
113
BRACKET
116
BRACKET
