Главная
›
Mercedes
›
BUS
›
S 431 DT
›
410.001
›
25 CLUTCH
›
330 HYDRAULIC-PNEUMATIC CONTROL IL. 1
Mercedes N910112006001 - Гайка M6

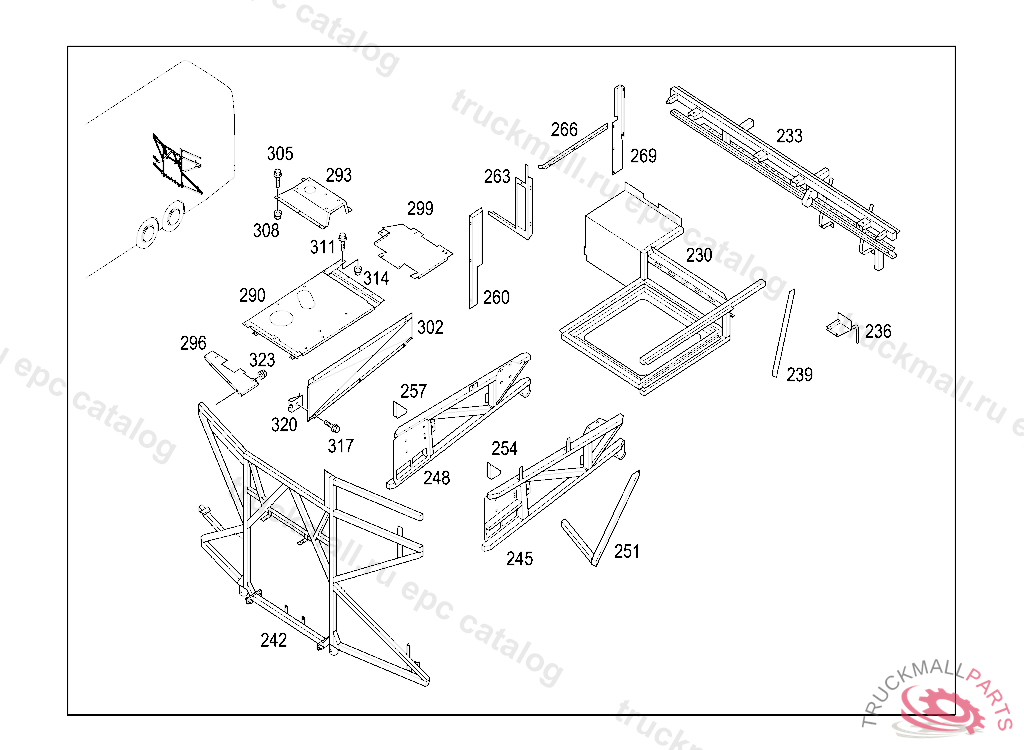

S 431 DT 410.001
25 CLUTCH - 330 HYDRAULIC-PNEUMATIC CONTROL IL. 1
Поз.
Артикул
Описание
230
A4106101823
SUPPORT
230
A4106104123
SUPPORT
233
A4106104423
SUPPORT
233
A4106101723
SUPPORT
236
A4106105508
COVER
236
A4106103008
COVERING
239
A4106102423
SUPPORT
242
A4106100214
CROSS MEMBERQT 9
242
A4106100414
CROSS MEMBERQT 9
245
A4106100373
FRAME
245
A4106100307
FRAME GIRDER
248
A4106100007
FRAME GIRDER
248
A4106100473
FRAME
251
A6296100425
REINFORCEMENT
254
A6296110916
REINFORCEMENT LEFT
257
A6296111116
REINFORCEMENT RIGHT
260
A4106122209
ANGLE
263
A4106122309
ANGLE
266
A4106122509
ANGLE
269
A4106123409
ANGLE
290
A6296109023
SUPPORT
293
A6296110969
SEAT REST
296
A6296163933
COVERING FRONT
299
A6296163833
COVERING REAR
302
A6296161533
COVERING MUFFLER
305
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
308
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
311
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
314
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
317
N910105006006
SCREW BRACKET AND CLAMP M6X20
320
A0029942145
LOCK. NUT , Replaced By: A0039941745
323
N910112006001
NUT , Replaced By: N913023006001
