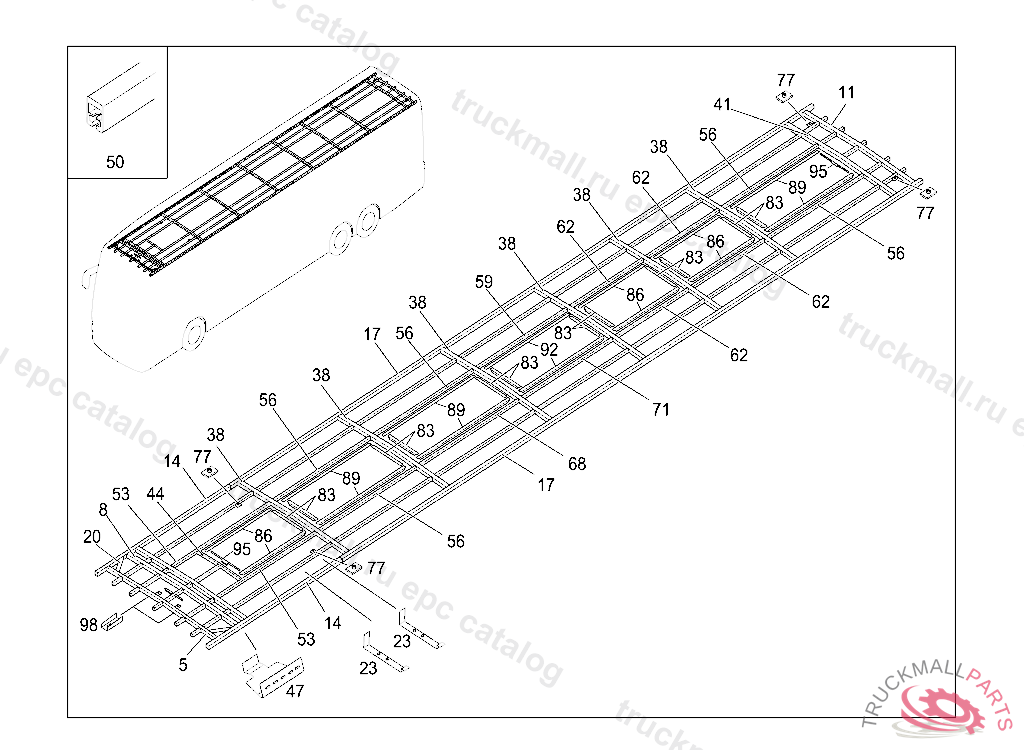

S 431 DT - 410.001 - 65 ROOF
Поз.
Артикул
Описание
5
ROOF BOW , UP TO IDENT NO. WKK 410001 13 101060 EXCEPT FOR 101041
5
ROOF BOW
8
CROSS BOW1970LG
11
ROOF BOW
14
ROOF RAIL
17
ROOF RAIL REAR L10245MM
20
PLATE
23
BRACKET
38
CROSS BOW1968LG
41
CROSS BOW
44
BOW PIECE
47
ANGLE B-PILLAR
50
METAL SECTIONL1145 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
TUBE
56
TUBE
59
TUBE
62
TUBE
68
TUBE
71
TUBE
77
BRACKET40X30MM
83
ATTACHMENT ANGLE BRACKET
86
ANGLE
89
ANGLE
92
ANGLE
95
ATTACHMENT ANGLE BRACKET
95
ANGLE
98
BRACKET
