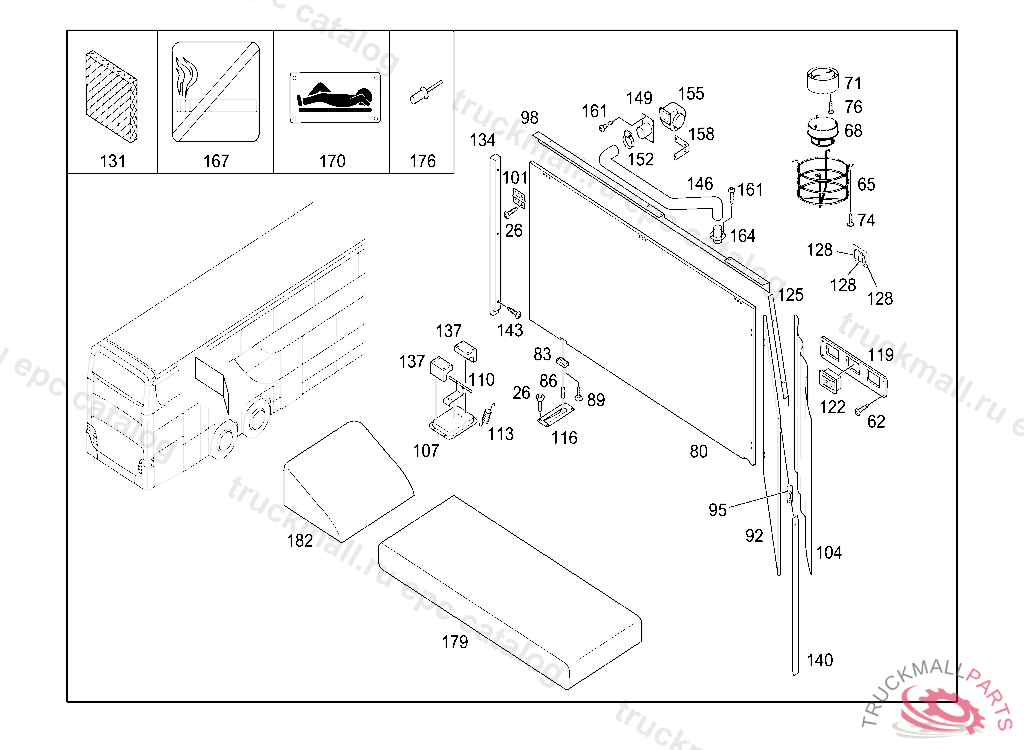

Поз.
Артикул
Описание
26
TAPPING SCREW3,5X16MM
62
TAPPING SCREW3,5X13
65
PROTECTIVE GRILLE
65
PROTECTIVE GRILLE , Replaced By: A0008210393
68
SMOKE DETECTORORS 142
71
SMOKE DETECTOR SOCKET TO BODY
74
TAPPING SCREW RAIL
76
TAPPING SCREW BRACKET MOUNTING
80
PARTITION PANEL
83
PLATE
86
PIN
89
TAPPING SCREW4.8X32
92
PARTITION PANEL
95
LATCH
98
SUPPORT
101
HINGE
101
HINGE
104
FABRIC , TO BE ADAPTED DURING ASSEMBLY
107
SHELL-TYPE HANDLE
110
BRACKET
113
SPRING
116
CLAMP
119
PLATE
122
NOZZLE
125
SUPPORT
128
ADAPTER FRAME
131
FOAM PLASTICS
131
FOAM PLASTICS
134
LEDGE
137
SPACER
140
SEALING STRIP
143
TAPPING SCREW4.8X38
146
HOSE50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
149
PIPE SOCKET
152
CLAMP
155
BLOWER FECES CONTAINER 24 V
158
ANGLE
161
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
164
FITTING
164
INTERMEDIATE PIECE , Replaced By: A6278660059
167
GUIDE SIGN NUMBER BOX
170
GUIDE SIGN INSIDE,GREEN
170
GUIDE SIGN OUTSIDE
176
RIVET
179
BUNK MATTRESS
179
BUNK MATTRESS HEATED
182
HEADREST
999
STRIKER PLATE
999
NUT
999
WASHER
999
SCREWM5X12 TX25
999
CLEANER
999
TAPPING SCREW DRIVER'S PARTITION PANEL 3,5X25MM
