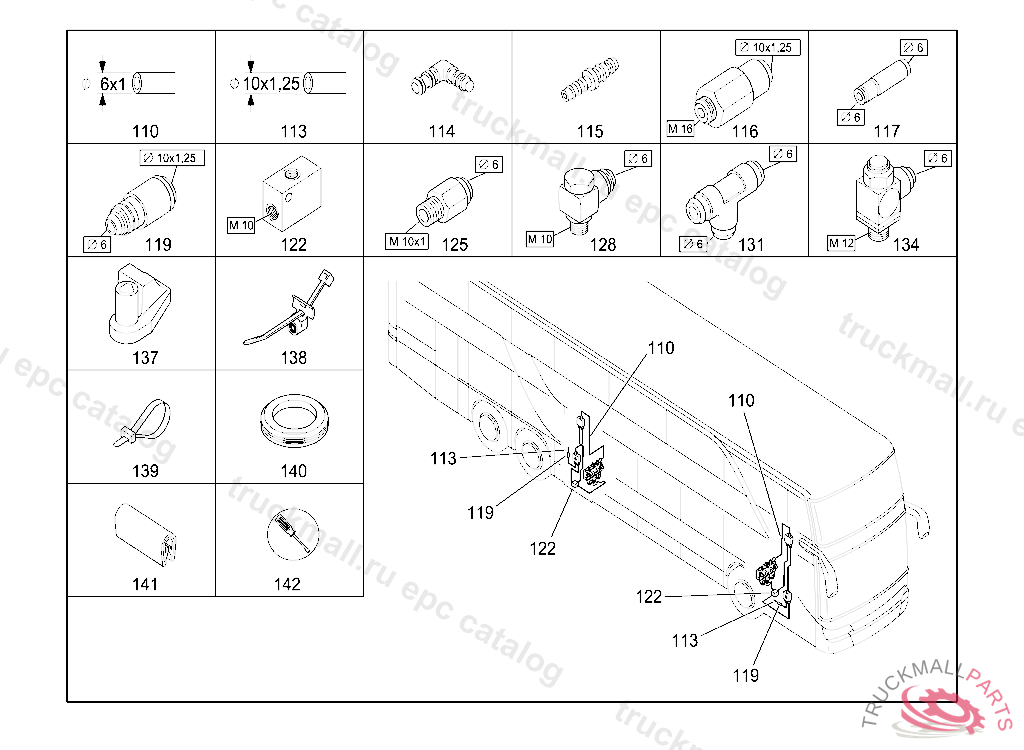

Поз.
Артикул
Описание
110
PLASTIC PIPE RISING PIPE 4X6 MM
113
PLASTIC PIPE10X1.25, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
114
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
115
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M10, 4MM, SDF
116
VALVE
117
VALVED6 MM
119
THREADED UNION
122
VALVE SHUTTLE VALVE
125
FITTING
128
FITTING
128
SLEEVE
131
T-FITTING
134
FITTING
137
RETAINING CLIP
138
CABLE TIE. BRACKET ELECTRIC CABLE TO ALTERNATOR 151 MM
139
CABLE TIE , Replaced By: A0049971890
139
LOOM TIE LINE MOUNTING 280 MM
140
GROMMET
141
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
142
ADHESIVE LABEL
