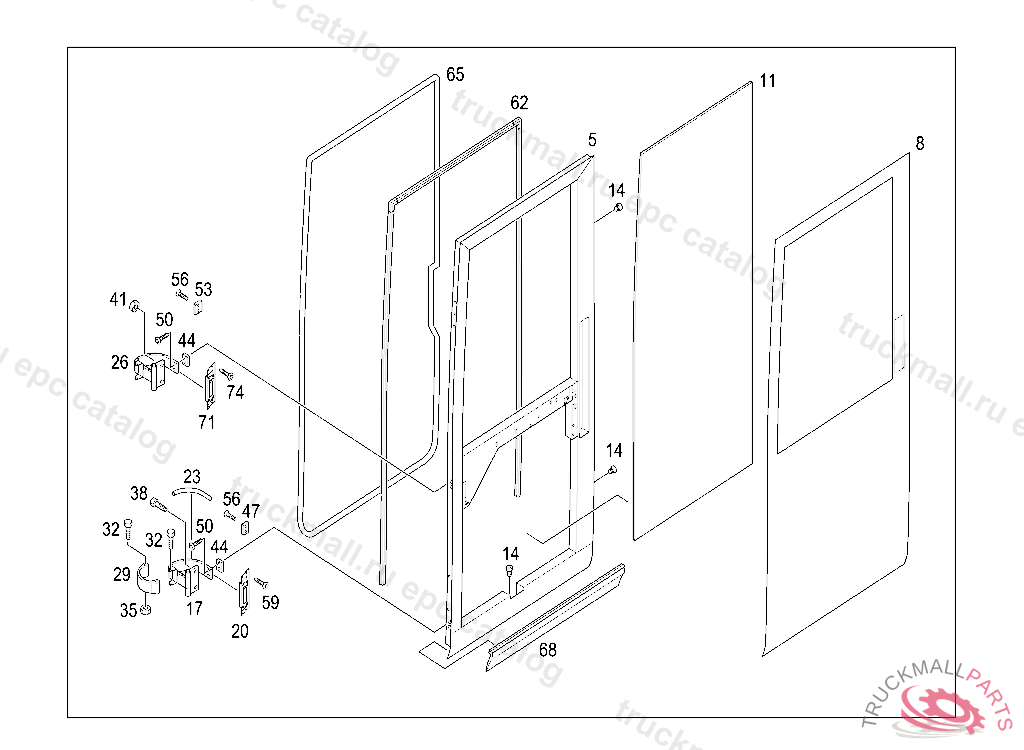

S 431 DT - 410.001 - 72 DOORS
Поз.
Артикул
Описание
5
DOOR SHELL
5
DOOR SHELL
5
DOOR SHELL
8
PANELLING
11
RUBBER STRIPL5200MM
14
RIVETED NUT
17
HINGE
20
SEAL SCHARNIER UNTEN
23
GUIDE
26
HINGE TOP
29
DOOR CHECK
32
HEXAGON HEAD BOLTM8X90
35
NUT HORN TO BRACKET M8
38
SCREWM 10X20
41
NUT , Replaced By: N913023010002
44
PLATE
47
PLATE BOTTOM
50
SCREW
53
PLATE UPPER HINGE
56
SCREWM5 X 16 MM
59
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
62
SEAL ON DOOR PILLAR
65
SEAL INSIDE
68
RUBBER SEALL810MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
SEAL SCHARNIER OBEN
74
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
999
SCREW W HEXAGON SOCKET
999
HANDLE OUTSIDE
