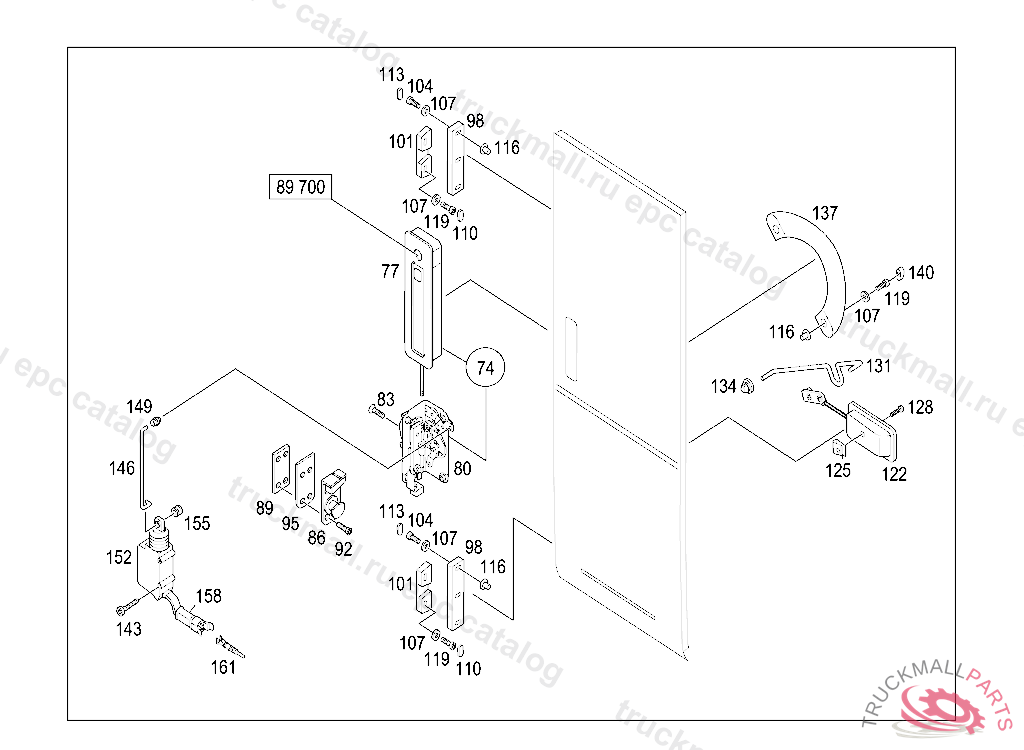

Поз.
Артикул
Описание
74
DOOR LOCK
77
DOOR HANDLE
80
DOOR LOCK
83
ECCENTRIC SCREW ROLLER BLIND TO BODY M6X16 T30
86
STRIKER RIGHT
89
PLATE STRIKER
92
SCREWM8X16
95
COMPENSATING PLATE STRIKER
98
HOUSING
101
BUFFER
104
SCREWM6X30
107
WASHER SWITCH TO FIRE WALL
110
LOCKING CAP BUFFER
113
LOCKING CAP HOUSING
116
RIVETED NUT
119
SCREWM8X20
122
OPERATING ROD
125
SPRING NUT. LOCK COVER ATTACHMENT
128
TAPPING SCREW SIDE REFLECTORS,K 057592
131
PULL ROD
134
CLIP
134
CLIP , Replaced By: A0039885078
137
HANDLE GREY
140
CAP GREY
143
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
146
PULL ROD
149
CLIP
149
CLIP , Replaced By: A0039885078
152
ELECTRIC MOTOR
155
RUBBER SLEEVE
158
PIN BUSHING HOUSINGTO A 000 820 19 08
161
PLUG PINTO A 000 820 19 08
