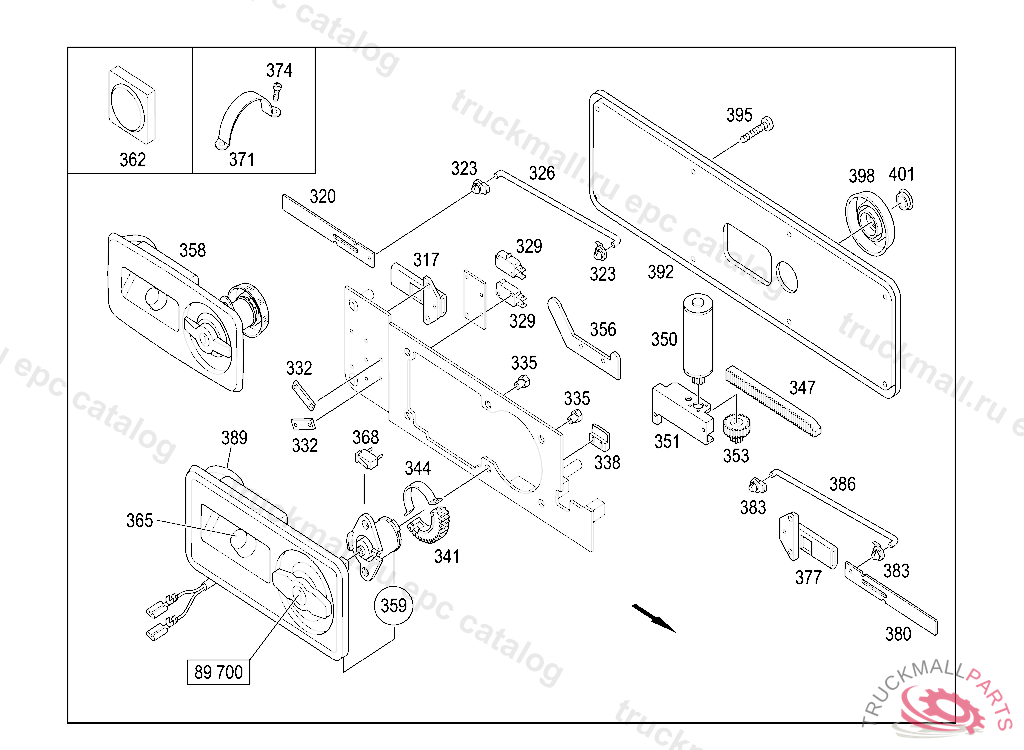

S 431 DT - 410.001 - 73 DOORS
Поз.
Артикул
Описание
317
LATCH GUIDE
320
SLIDE
323
LOCK
326
ROD
326
PULL ROD , Replaced By: A6297200092
329
SWITCHTO 000 760 35 57
332
PLATE WITH THREADED HOLES
335
THREADED BUSHING
335
HOLDING DEVICE
338
GUIDE THRUST PIECE
341
GEAR (TOOTHED SEGMENT)
344
CLAMP
347
PULL ROD
350
MOTOR
351
CONSOLE
353
GEAR DOUBLE GEAR
356
COVERING
358
HANDLE
359
HANDLE
359
FASTENER , Replaced By: A6297600160
362
ORNAMENTAL COVER MICRO-SWITCH
365
MICRO-SWITCHTYP83123
368
MICRO-SWITCH
371
CLAMP
374
SCREWM4X8
377
LATCH GUIDE
380
SLIDE
383
LOCK
386
ROD
386
PULL ROD
389
ELECTRIC CABLE , STATE IDENT NO. WHEN ORDERING
389
ELECTRIC CABLE
392
COVERING DOOR LOCKING MECHANISM
392
COVERING DOOR LOCKING MECHANISM
395
TAPPING SCREW3.5X9.5
398
HANDLE
401
COVERING PLUG
