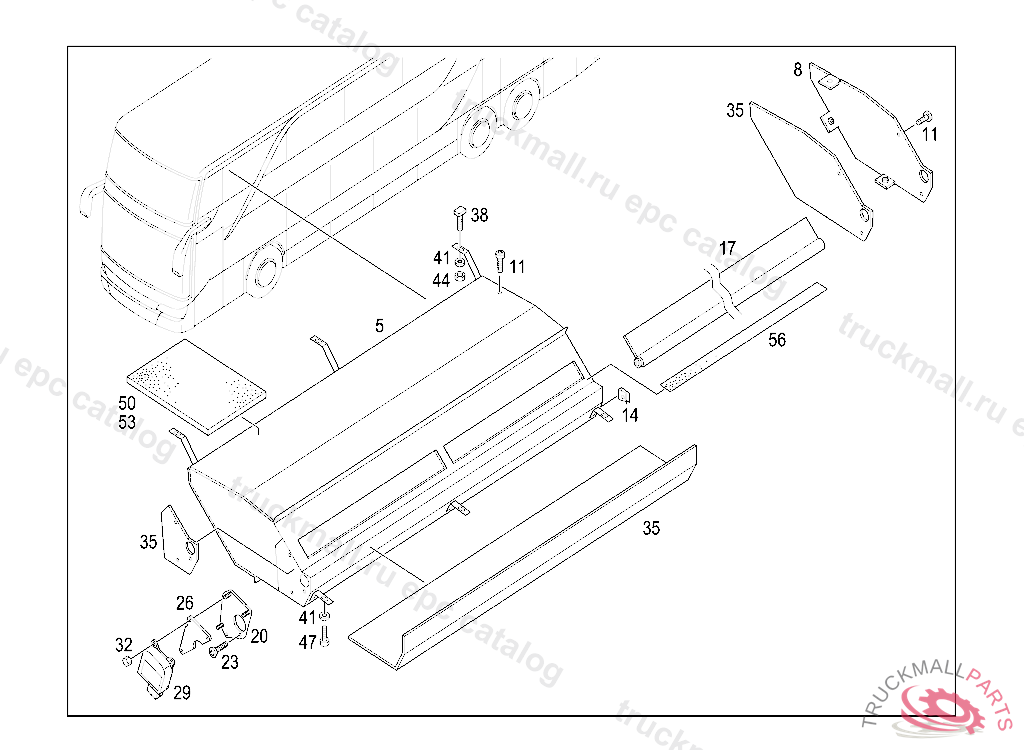

S 431 DT - 410.001 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
5
HOUSING RIGHT
5
HOUSING LEFT
8
FLAP LEFT
8
FLAP RIGHT
11
SCREWM 5 X 10
14
CLIP FASTENERM5
17
FLAP
20
BRACKET
23
SCREW
26
PLATE
29
MOTOR
32
NUTM4
35
INSULATION
38
SCREW F CRANKCASEM8X30
41
WASHER EXHAUST MUFFLER TO STRAP
44
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
47
SCREW BRACKET TO CAB REAR PANEL M 8X20
50
COVERING
53
COVERING
56
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
