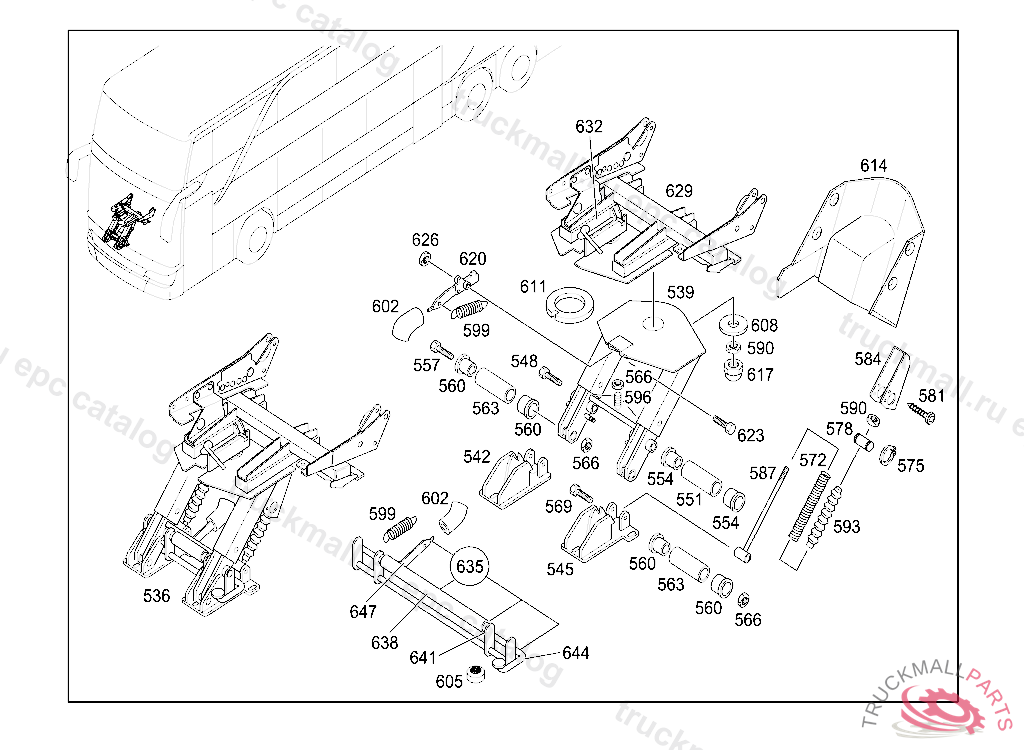

S 431 DT - 410.001 - 91 FRONT SEATS
Поз.
Артикул
Описание
536
FRONT SEAT
539
SEAT FRAMEWORK
542
GUIDE RAIL
545
GUIDE RAIL
548
HEXAGON HEAD BOLT TORSION BAR TO SHACKLE M12X1,5X110MM
551
BUSHING
554
BUSHING
557
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
560
BUSHING
563
BUSHING
566
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
569
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
572
SPRING
575
LOCK RING
578
GUIDE
581
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
584
COVERING
587
ROD
590
NUTM 10
593
BELLOWS
596
THREADED PINM 10X25
599
TENSION SPRING
599
SPRING TENSION SPRING
602
CAP
605
COVERING
608
WASHER P.T.O. TO TRANSMISSION
611
WASHER
614
COVERING
617
CAP NUT
620
LEVER
623
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
626
NUT HORN TO BRACKET M8
629
ADJUSTER
632
SPRING
635
SHAFT
638
BUSHING
641
BUSHING
644
LEVER
647
LEVER
999
FRONT SEAT LESS COVER
999
CLIP
