Поз.
Артикул
Описание

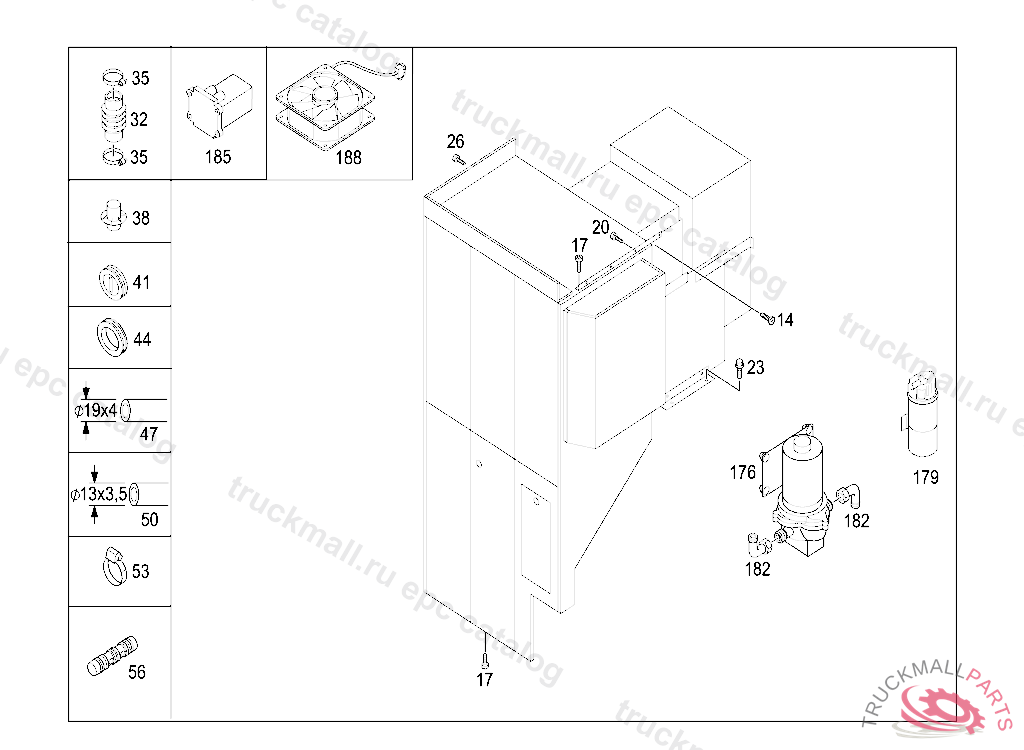

14
TAPPING SCREW BRACKET MOUNTING
17
TAPPING SCREW SIDE REFLECTORS,K 057592
20
TAPPING SCREW ATTACHMENT GRAB HANDLE
23
TAPPING SCREW4,8X22MM
26
TAPPING SCREW4.8X19
32
HOSE50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
35
CLAMP
38
FITTING
41
GROMMET
44
GROMMET FOR BORE 32 MM
47
HOSE19 X 4
50
HOSE DRINKING WATER PVC MIT GEWEBE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
53
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
COUPLING
176
PUMP
179
PUMP
182
FITTING WATER PUMP
185
PUMP
188
ELECTRIC MOTOR
999
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
999
BRACKET
999
ELECTRICAL WIRING HARNESS
999
FUSE
999
CONTAINER
999
LINKAGE
999
DOME LAMP KITCHENETTE
999
HEATING PAD
