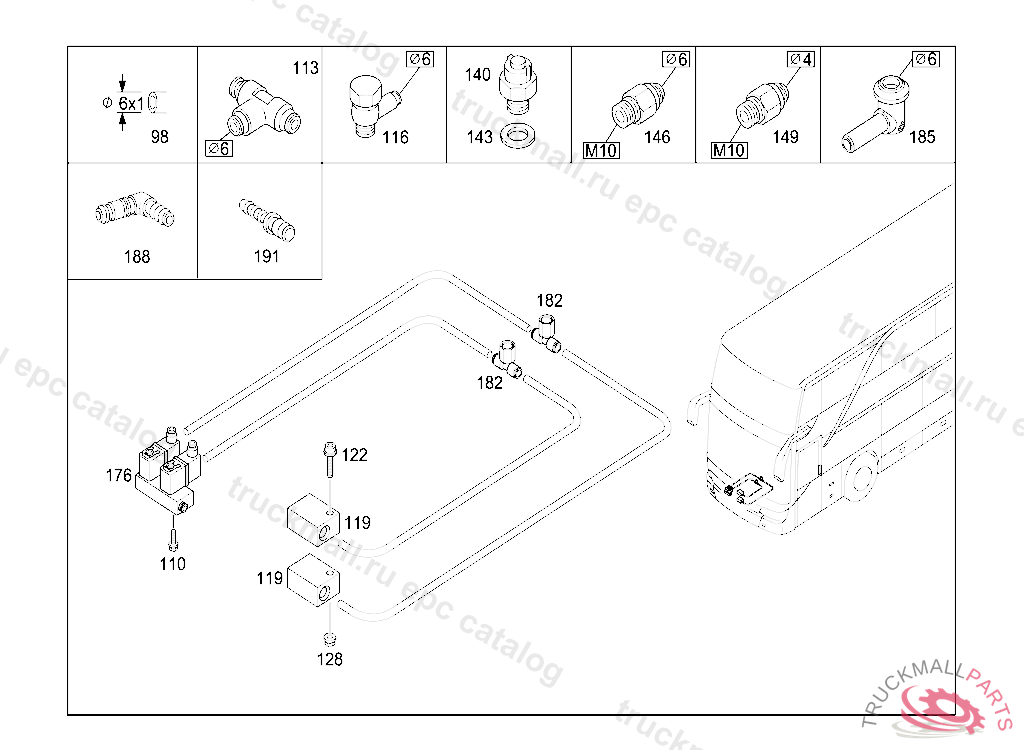

S 431 DT - 410.001 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
98
PLASTIC PIPE RISING PIPE 4X6 MM
110
HEXAGON HEAD BOLT
113
T-FITTING
116
FITTING
119
VALVE SHUTTLE VALVE
122
SCREWM 4 X 50
128
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
128
NUT-AND-WASHER ASSEMBLY. NUTM4
140
SWITCH3 BAR
143
SEAL RING
146
FITTING
149
FITTINGM 10 X 1
176
VALVE
182
COUPLING
185
ELBOW FITTING
188
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
188
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
191
FITTING , Replaced By: N915059004001
