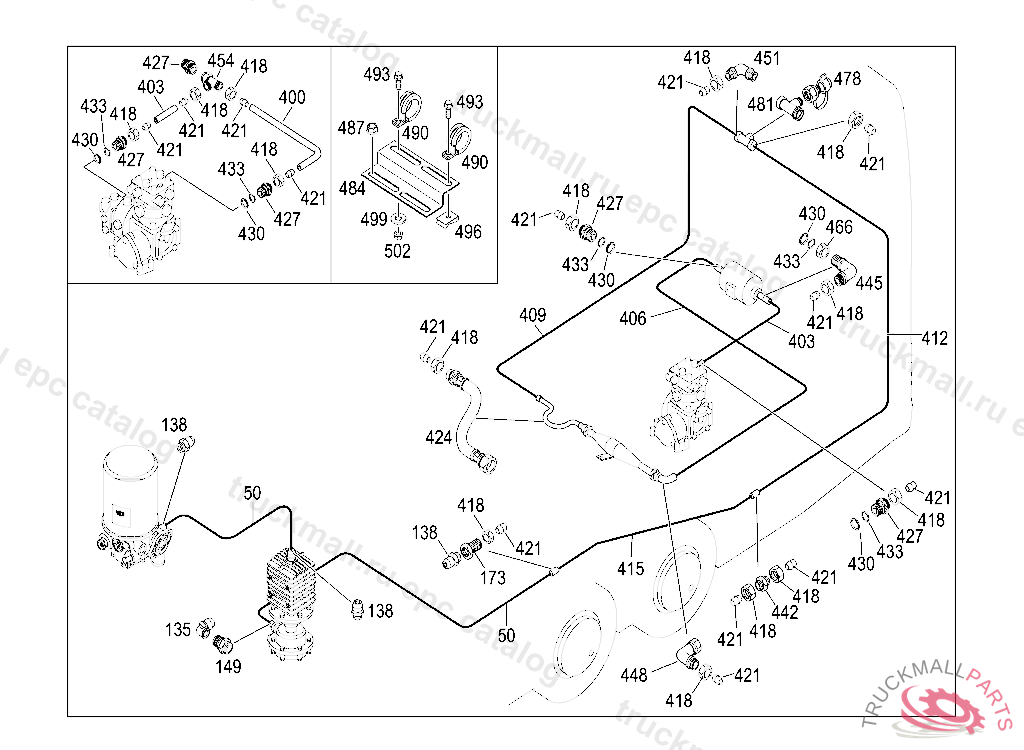

Поз.
Артикул
Описание
50
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
135
ELBOW FITTINGP5/16X2/90GR RAUFOSS
138
FITTING16X2/M22X1.5 RAUFOSS
149
FITTINGP5/M22X1.5 RAUFOSS
173
FITTINGM22X1.5/M26X1.5 RAUFOSS
400
LINE18X1.5X870
403
LINE650LG
406
LINE80 LG.
409
LINE18X1.5X550
412
LINE18X1.5X1376
415
LINE18X1.5X1900
418
NUT COMPRESSED AIR LINES
418
UNION NUT LINE MOUNTING
421
CUTTING RINGBL 18
424
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
424
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
427
SCREW-IN FITTING , Replaced By: A0029970271
430
THRUST RING
433
SEAL RING24X3
442
CONNECTION FITTING LINE CONNECTIONS
442
CONNECTION FITTING , Replaced By: N003902018002
445
FITTING
445
FITTING
448
FITTING LINE CONNECTION
451
FITTING LINE CONNECTION
454
FITTING FROM T-FITTING TO SCREW CONNECTION
466
NUT 3/2-WAY VALVE TO CAB,4 685151
478
TEST CONNECTION
481
T-FITTINGM26X1.5/M16X1.5/M26X1.5
484
"Z" SECTION225LG
484
"Z" SECTION60MM, Replaced By: A6279850349
487
NUT HORN TO BRACKET M8
490
MOUNTING CLAMP SILICONERSGU S 18/15
490
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
490
CLAMPRSGU S 18/15
490
CLAMP LINE MOUNTING 15-18 MM,V 207570
490
CLAMP BRAKE HOSE BRACKET
493
SCREW BRACKET AND CLAMP M6X20
496
LOCK. NUT , Replaced By: A0039941745
499
WASHER LINE MOUNTING
502
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
999
AXLE MODULATOR DRIVING AXLE
999
CABLE TIE , Replaced By: A0049971890
999
CABLE TIE LINE MOUNTING 375X8.4MM
