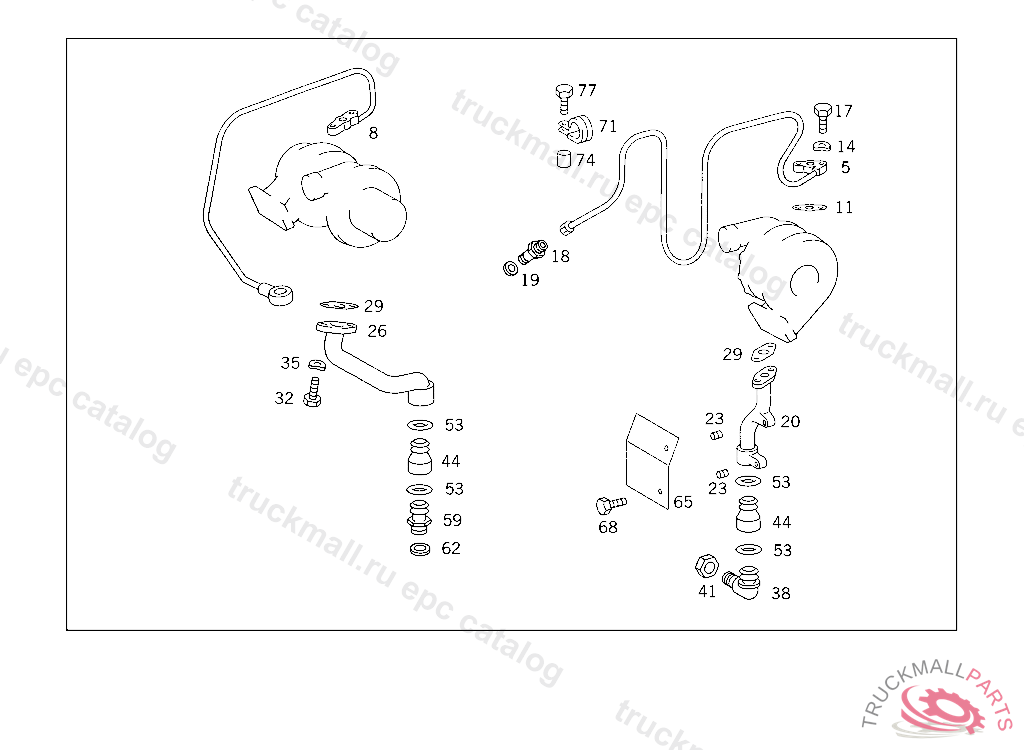

Поз.
Артикул
Описание
5
OIL LINE LEFT
8
OIL LINE FEED,RIGHT
11
GASKET FLANGE TO TURBOCHARGER
14
WASHER BRACKET TO CROSS MEMBER
17
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
18
HOLLOW SCREW FITTING
19
SEAL RINGTO 000 553 03 05,000 553 18 05,
20
PIPE ELBOW SUCTION PIPE TO OIL PUMP
23
THREADED INSERT
26
PIPE ELBOW TURBOCHARGER OIL RETURN
29
GASKET OIL RETURN LINE TO TURBOCHARGER
32
SCREW STOP TO BATTERY CASE
35
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
35
SPRING WASHER , Replaced By: N000137008212
38
PIPE ELBOW OIL RETURN TO TIMING CASE,LEFT
41
NUT 3/2-WAY VALVE TO CAB,4 685151
41
NUT , Replaced By: N080705026003
44
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
44
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
53
SEAL RING TURBOCHARGER OIL RETURN
59
FITTING OIL RETURN TO TIMING CASE,RIGHT
62
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
65
SCREENING PLATE OIL RETURN TO TIMING CASE,LEFT
68
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
68
SCREW , Replaced By: N304017008008
71
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
74
SPACER TUBE , Replaced By: A4602910350
74
BUSHING APPARATUS PLATE 9 MM, TO BE ADAPTED DURING ASSEMBLY
77
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
999
GASKET , Replaced By: A4421870080
999
GASKET , Replaced By: A4421870180
