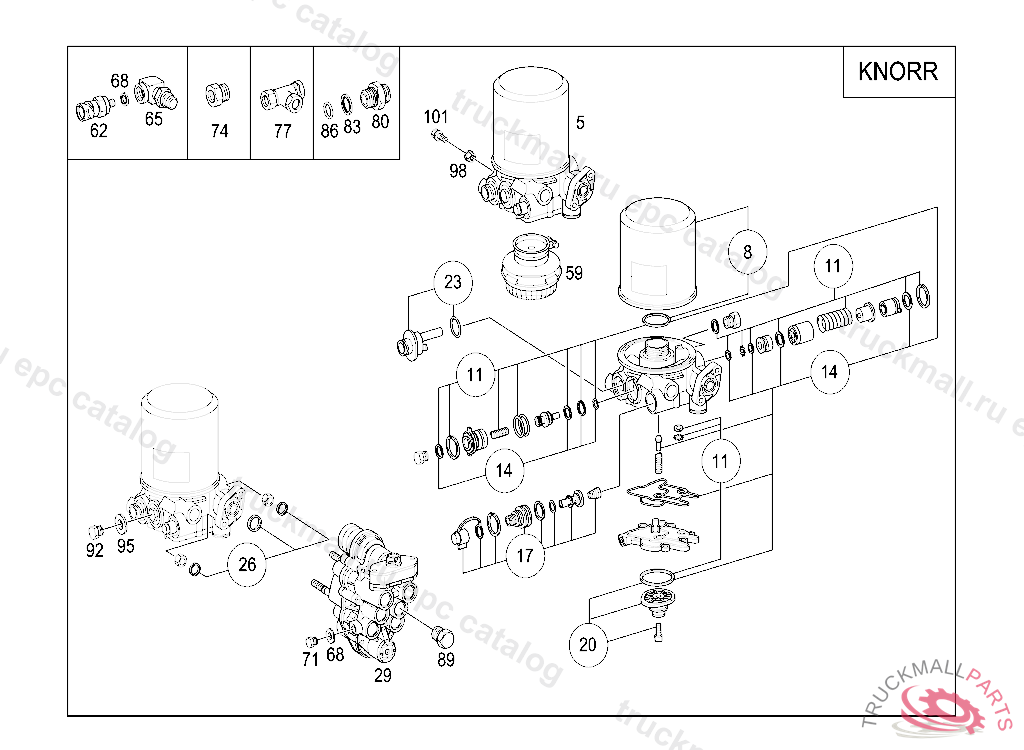

Поз.
Артикул
Описание
59
MUFFLER
62
PLUG SOCKET COMPRESSOR
62
PRESSURE SWITCH RELAY VALVE,CONNECTION: "21", 5.5 BAR
65
ELBOW FITTING LINE CONNECTION
68
SEAL RING 3/2-WAY VALVE
71
SCREW PLUGROCKINGER,TYP 59 U150
74
FITTING REDUCTION FITTING
77
FITTING FROM T-FITTING TO SCREW CONNECTION
80
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
O-RING CHECK VALVE TO AIR RESERVOIR
89
SCREW PLUG AIR RESERVOIR
92
SCREW PLUGROCKINGER,TYP 59 U150
92
SCREW PLUG AIR DEHYDRATOR,CONNECTION: M10X1
95
SEAL RING 3/2-WAY VALVE,CONNECTION: "Z"
95
SEAL RING 3/2-WAY VALVE
98
NUT BRACKET TO SIDE MEMBER M12X1.5
101
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
101
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
