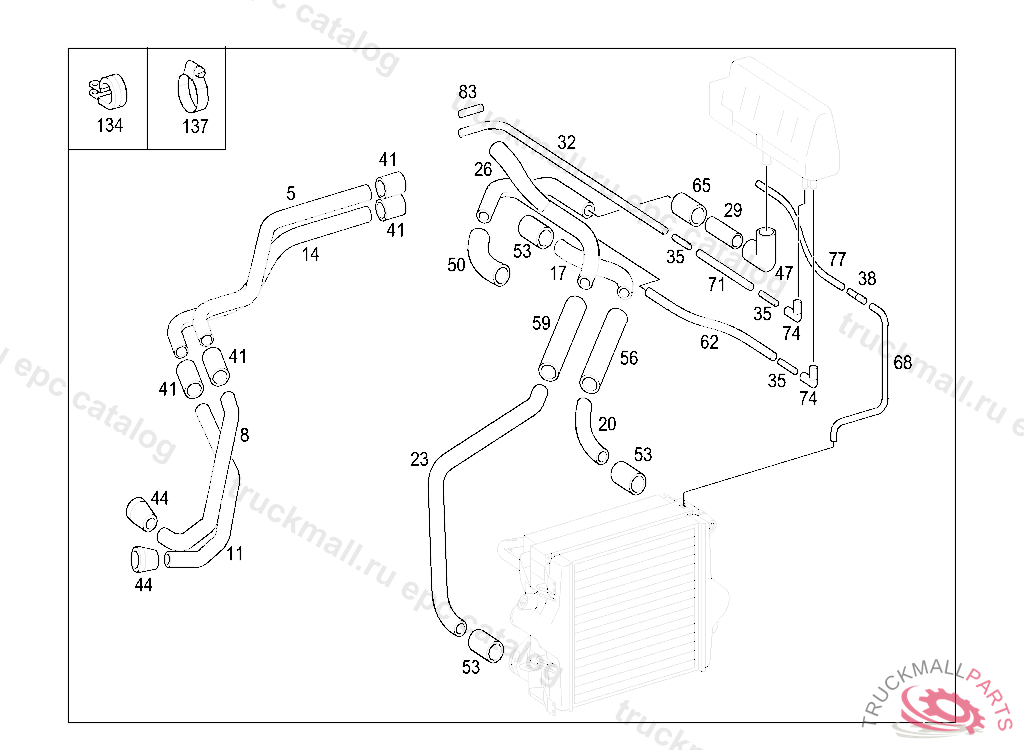

Поз.
Артикул
Описание
5
COOLING WATER PIPE FEED LINE, RETARDER,WEB 444203 13 000123
5
COOLING WATER PIPE FEED LINE, RETARDER,WEB 444203 13 000124
8
COOLING WATER PIPE
11
COOLING WATER PIPE
14
COOLING WATER PIPE RETURN LINE ON RETARDER
17
COOLING WATER PIPE FROM WATER PUMP TO RADIATOR
20
COOLING WATER PIPE FROM WATER PUMP TO RADIATOR
23
COOLING WATER PIPE PIPE ON SIDE SECTION OF RADIATOR, BOTTOM
26
COOLING WATER PIPE AT WATER PUMP,BOTTOM
29
HEATING PIPED38/370MM
32
BREATHER PIPE ,WEB 444203 13 000124
32
BREATHER PIPE ,WEB 444203 13 000123
35
COOLING WATER PIPED10 70LG
38
COOLING WATER PIPED10/12105LG
41
HOSE50X62X120MM
41
HOSE FEED AND RETURN LINES TO RETARDER 50X120MM
41
HOSE , Replaced By: N000000005003
44
MOLDED HOSE , Replaced By: N900271060002
44
MOLDED HOSE NARROWED STRAIGHT SURFACE 60/50MM
47
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
47
PIPE BEND
50
MOLDED HOSE , Replaced By: A3015010782
53
HOSE LINE TO RETARDER
53
HOSE50X62X100MM
56
HOSE COOLING WATER FEED LINE,V 207570
59
HOSE50X62X360,WEB 444203 13 000123
62
HOSE10X19X325MM
62
HOSE , Replaced By: N000000004928
65
RADIATOR HOSE38X100MM, Replaced By: N000000004992
65
HOSE ,D 209702
68
HOSE , Replaced By: N000000004936
68
HOSE670LG
71
HOSE10X19X240MM, TO BE ADAPTED DURING ASSEMBLY
71
HOSE , Replaced By: N000000004925
74
MOLDED HOSE ARC REDUCED 90 DEGREES 15/10MM
77
HOSED12 500LG
77
HOSE , Replaced By: N000000004951
83
HOSE10X19X100MM, Replaced By: N000000004922
83
HOSE10X19X100MM
134
CLAMP LINE MOUNTING 15-18 MM,V 207570
134
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
134
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
134
CLAMP50/25, Replaced By: N000000007521
134
CLAMP BRAKE HOSE BRACKET
134
CLAMP , Replaced By: N916016010211
134
CLAMP PIPE ON FAN SHROUD
134
CLAMP50/25MM
137
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
137
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
137
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
137
CLAMP
137
CLAMP HOSE TO FITTING 11 - 20 MM
137
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
