Поз.
Артикул
Описание
5

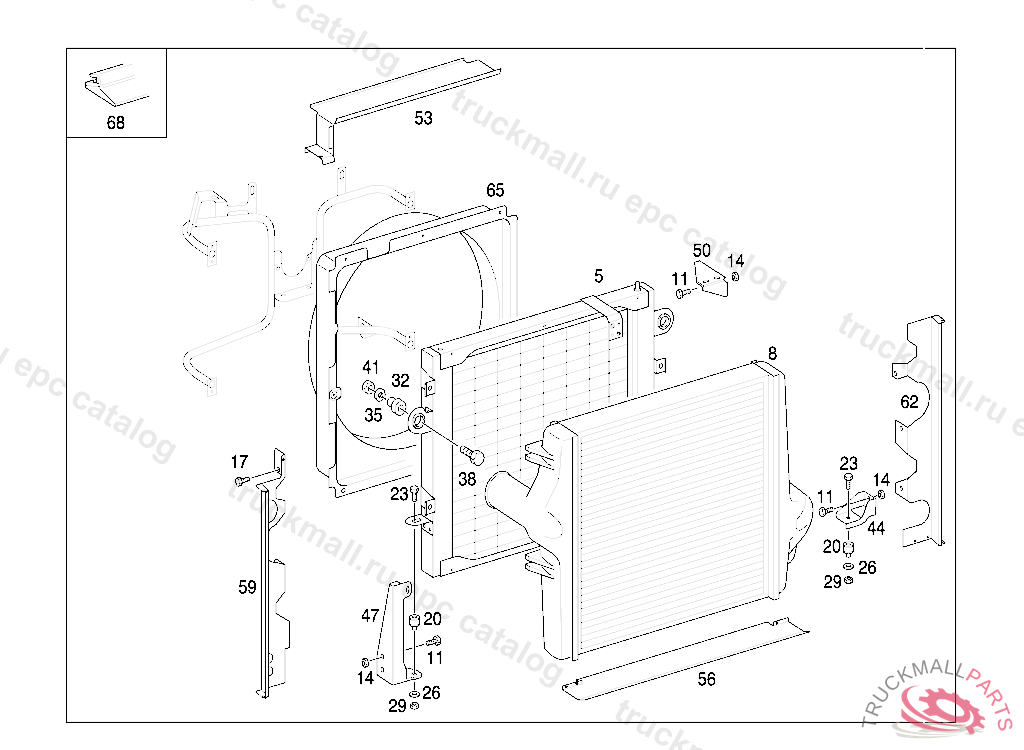

RADIATOR RADIATOR
8
RADIATOR CHARGING AIR INTERCOOLER
11
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
14
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
17
SCREW SPEED SENSOR TO REAR AXLE
17
SCREW PIPE ELBOW TO BRACKET M8X12
20
RUBBER MOUNTM12X70X45
23
HEXAGON HEAD BOLT FILTER HOUSING TO BRACKET M12X20
26
WASHER BATTERY CASE TO SIDE MEMBER
29
NUT ANGLE TO FRAME
32
RUBBER MOUNTING RADIATOR MOUNTING,TOP
35
WASHER SUPPORT TO SIDE MEMBER
38
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
41
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
44
BRACKET RADIATOR MOUNTING
47
SUPPORT RADIATOR MOUNTING
50
BRACKET RADIATOR MOUNTING
53
AIR BAFFLE ON RADIATOR,TOP
56
AIR BAFFLE RADIATOR BOTTOM
59
AIR BAFFLE LEFT
62
AIR BAFFLE RIGHT
65
FAN SHROUD
68
RUBBER PROFILE BLACK, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
