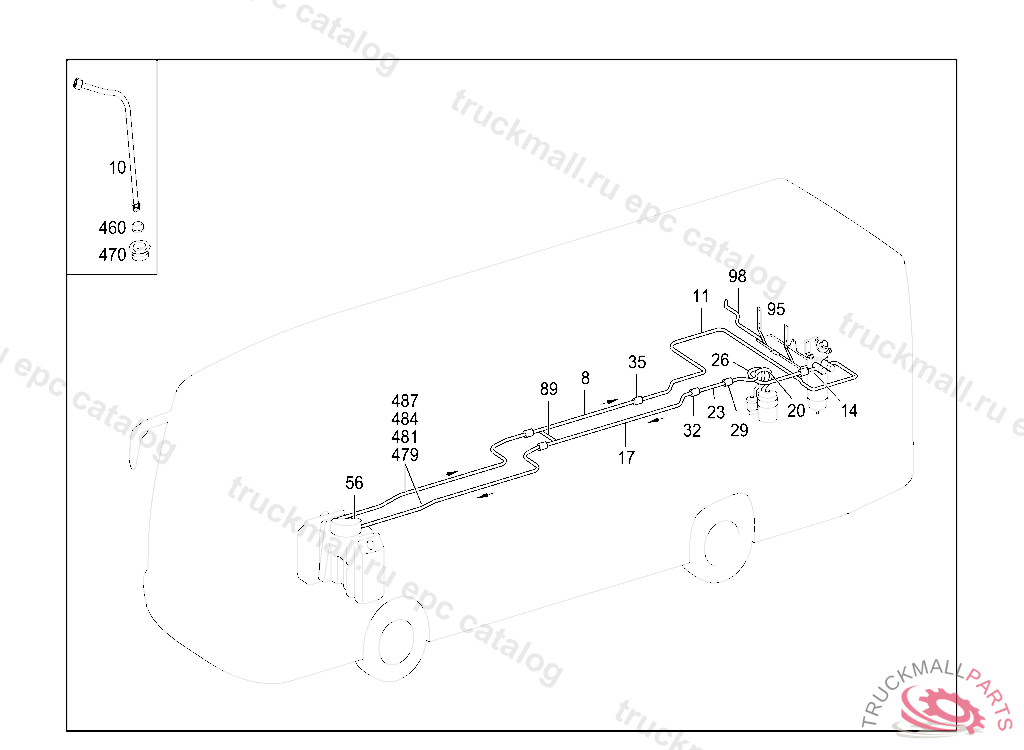

MBC-FAHRGESTELL EURO 4 - 444.300 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
8
LINE FUEL FEED 1300LG
10
FUEL LINE
11
LINE FUEL FEED 3320MM
14
LINE FUEL FEED 70MM
17
LINE FUEL RETURN 2500LG
20
FUEL HOSE
23
LINE FUEL RETURN 70LG
26
FUEL HOSE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.12.2008
29
VALVE
32
FITTING
35
FITTING15MM
56
LOCK FUEL GAUGE SENDER UNIT CONNECTION
89
BRACKET
95
COLLECTING PAN
98
HOSE LEAK LINE
460
SEALING CONE
470
NUTM18X1,5
479
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
479
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
481
UNION NUT FEED LINE
484
FITTING FUEL LINES
487
HOSE CONNECTION
