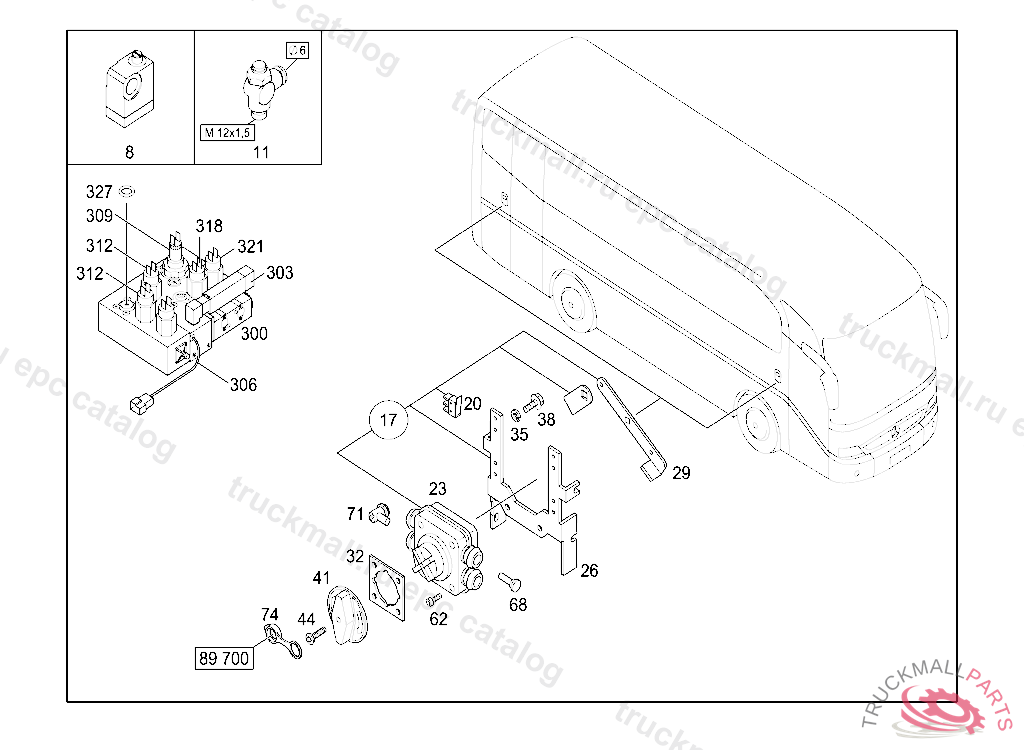

TOURINO EURO 4 - 444.303 - 76 DOOR AND WINDOW ACCESSORIES
Поз.
Артикул
Описание
8
VALVE QUICK BREATHER VALVE
11
FITTING
17
CONTROL COCK KEY LOCKING
20
SWITCH
23
CONTROL COCK
26
BRACKET
29
ACTUATING LEVER
29
LEVER , Replaced By: A0007663224
32
RUBBER PAD
35
LOCK
38
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
41
ROTARY KNOB
41
ROTARY KNOB
44
SCREW
62
HEXAL. SOCKET CSK. BOLTM6X10 TX30
68
PLUG
71
ELBOW FITTING
74
CAP
300
VALVE DOOR CONTROL, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 09.06.2005
303
DIRECTIONAL CONTROL VALVE
306
CONTROL ELECTRONICS
306
CONTROL ELECTRONICSTO A 000 760 75 78, Replaced By: A0008201085
309
VALVE
312
SWITCH
318
SWITCH
321
SWITCH
327
O-RING
999
PLUG
999
SEAL RING17.5X12.2X2
999
PULL OUTSIDE
999
PULL INSIDE
