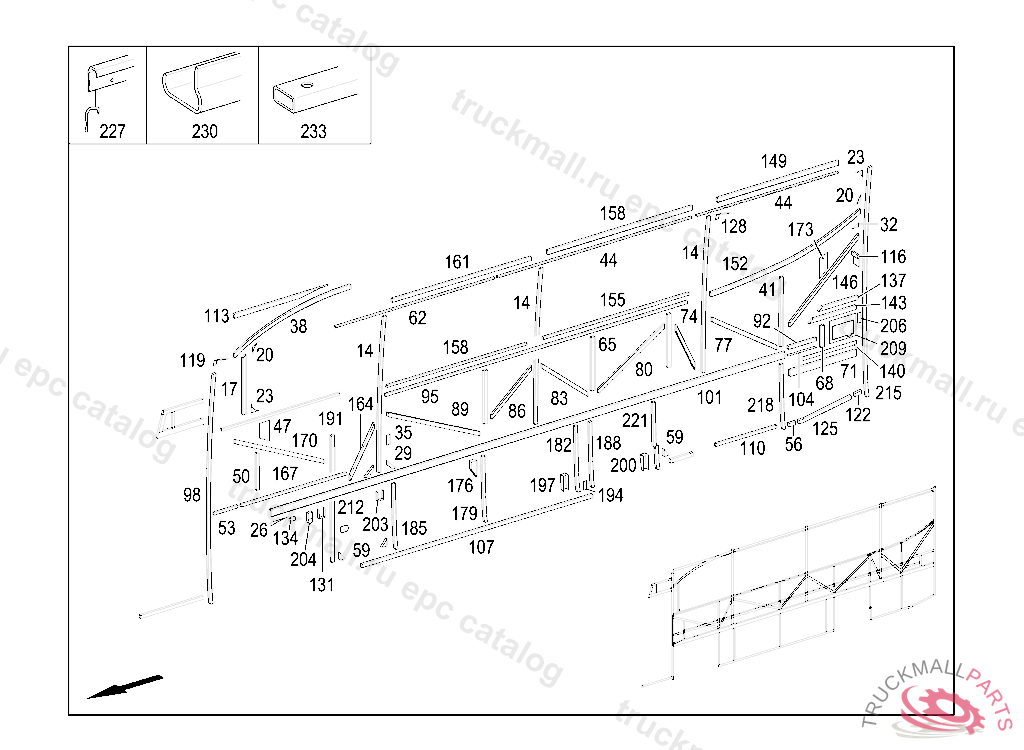

TOURINO EURO 4 - 444.303 - 63 SIDE PANELS
Поз.
Артикул
Описание
14
PILLAR
17
PILLAR
20
REINFORCEMENT
23
REINFORCEMENT
26
FRAME PART
29
STRUD
32
TUBE
35
BRACKET
38
FRAME PART
41
FRAME PART
44
BRACKET
47
REINFORCEMENT
47
REINFORCEMENT
50
TUBE
50
TUBE
53
STRUD
53
STRUD
56
BRACKET
59
REINFORCEMENT
62
RAIL
65
TUBE
68
TUBE
71
STRUD
74
TUBE
77
TUBE
80
TUBE
83
TUBE
86
TUBE
89
TUBE
92
RAIL
92
RAIL
95
TUBE
98
TUBE
101
TUBE
104
TUBE
107
TUBE
110
RAIL
113
RAIL
116
WEB
119
STRUD
122
FRAME PART
125
FRAME PART
125
FRAME PART
128
STRUD
131
BRACKET
134
BRACKET
137
BRACKET
140
BRACKET
143
TUBE
146
TUBE
149
TUBE
152
TUBE
155
TUBE
158
TUBE
161
TUBE
164
TUBE
167
TUBE
170
TUBE
173
FRAME PART
176
FRAME PART
179
STRUD
182
STRUD
185
STRUD
188
FRAME PART
191
FRAME PART
194
BRACKET
197
STRUD
200
STRUD
203
BRACKET
204
BRACKET
206
STAY
209
STAY
212
BRACKET
215
STAY
218
STRUD
221
STRUD
227
"Z" SECTION SEAT ANCHORAGE POINTS, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
230
METAL SECTION
233
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
SIDE PANEL LEFT
999
SIDE PANEL LEFT
