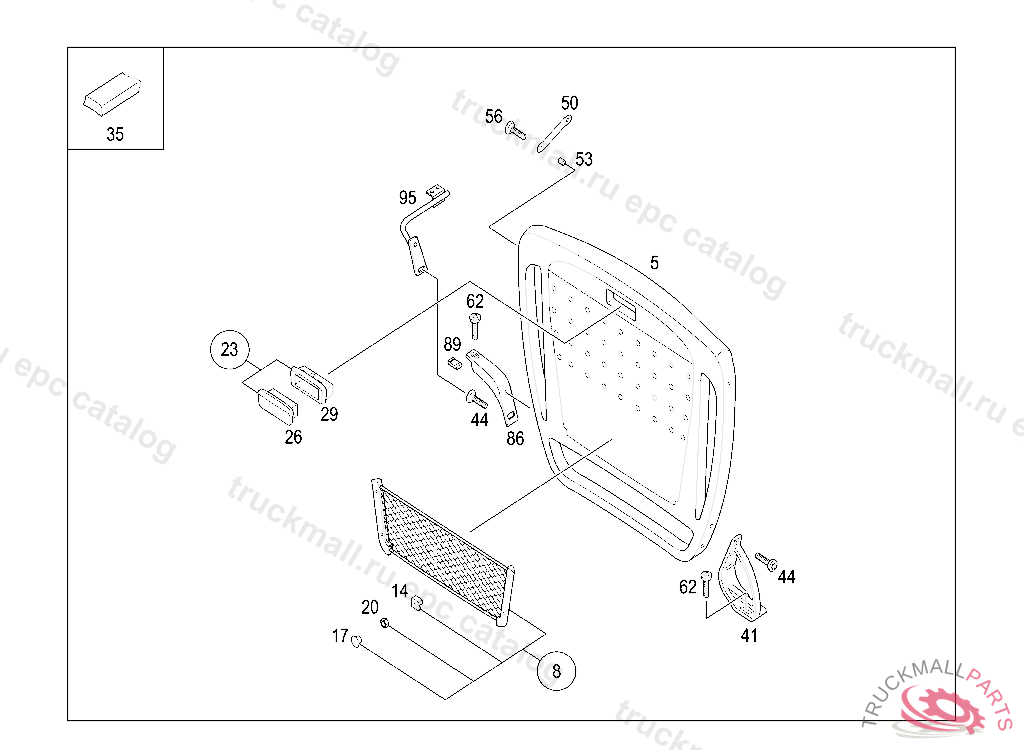

TOURINO EURO 4 - 444.303 - 71 PARTITION PANEL
Поз.
Артикул
Описание
5
PARTITION PANEL
8
LUGGAGE NET TOTAL RANGE OF DELIVERY
8
LUGGAGE NET TOTAL RANGE OF DELIVERY, Replaced By: A6328100149
14
COVERING
17
LOCKING CAP
20
NUT BRACKET MOUNTING
23
ASHTRAY TOTAL RANGE OF DELIVERY
26
COVER
29
HOUSING
35
GARNISH STRIP AT PARTITION PANEL, TO BE ADAPTED DURING ASSEMBLY
41
STAY ON SIDE OF AISLE
44
SCREWM 8X22, T40
50
ANGLE
53
SPACER BUSH15X9X11LG.
56
SCREW, SPECIAL SHAPEM8X28
62
SCREWM8X40
86
STAY
89
ANGLE
95
CONSOLE RIGHT
999
CLIP
